300mm Stainless Steel Right-Angle Water Level Sensor – Liquid Float Switch

📖 Description

• This stainless-steel right-angle water level sensor is a durable and reliable float switch designed for accurate liquid level detection in tanks, pools, and industrial applications. It features a corrosion-resistant stainless-steel body, making it suitable for various liquids, including water and chemicals. Its right-angle design allows for easy side mounting, ensuring stable and efficient level monitoring.

🔧 Key Specifications

• Material: 304 stainless steels for corrosion resistance and durability

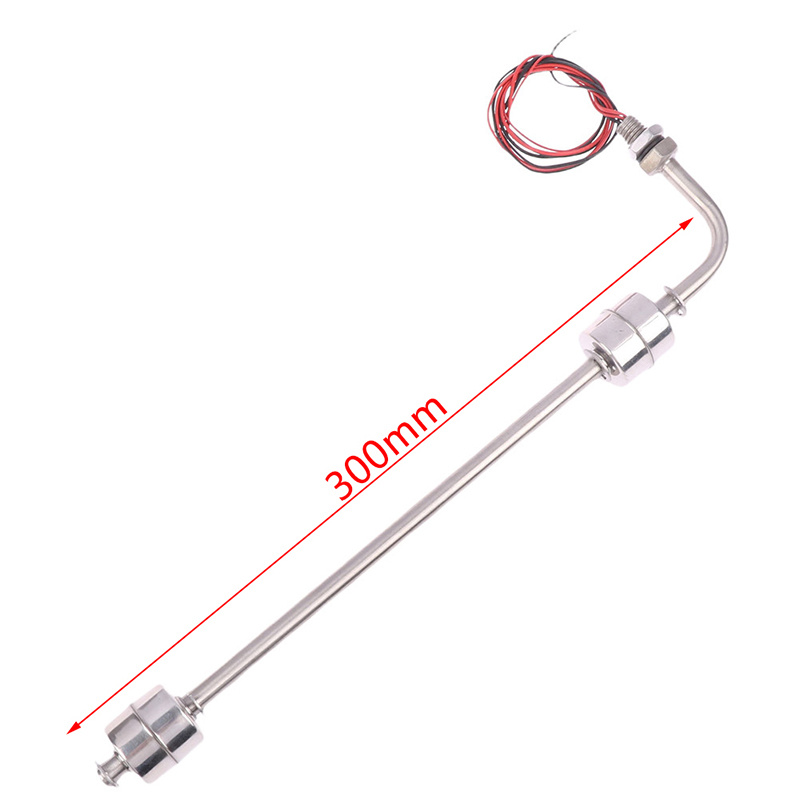

• Length: 300mm (sensor stem)
• Mounting Style: Right-angle (L-type) design for side or vertical installation
• Voltage Rating: Typically supports 0–110V or up to 240V AC/DC, depending on the model
• Power Rating: Commonly around 10W
• Contact Type: Reed switch with high sensitivity
• Operating Temperature: Up to 120°C
• Applications: Suitable for water tanks, pools, aquariums, and industrial fluid systems

✅ Features

• High Sensitivity: Utilizes a reed switch for precise liquid level detection
• Durable Construction: Made from 304 stainless steel, ensuring longevity and resistance to corrosion
• Versatile Mounting: Right-angle design allows for flexible installation options
• Wide Voltage Compatibility: Supports a range of voltages, making it adaptable to various systems
• Temperature Resilience: Operates effectively in environments up to 120°C​

Main material : 304 stainless stee
Switching voltage : 220vd
Breakdown voltage : 450VDC min
Breakdown current : 1.5 ADC min
Resistance value : 0.1 – min
Working temperature : 40-125′ C
Medium specific gravity : 0 7g / cm3
Working pressure : < 1 . 0mpa
Electric shock capacity
