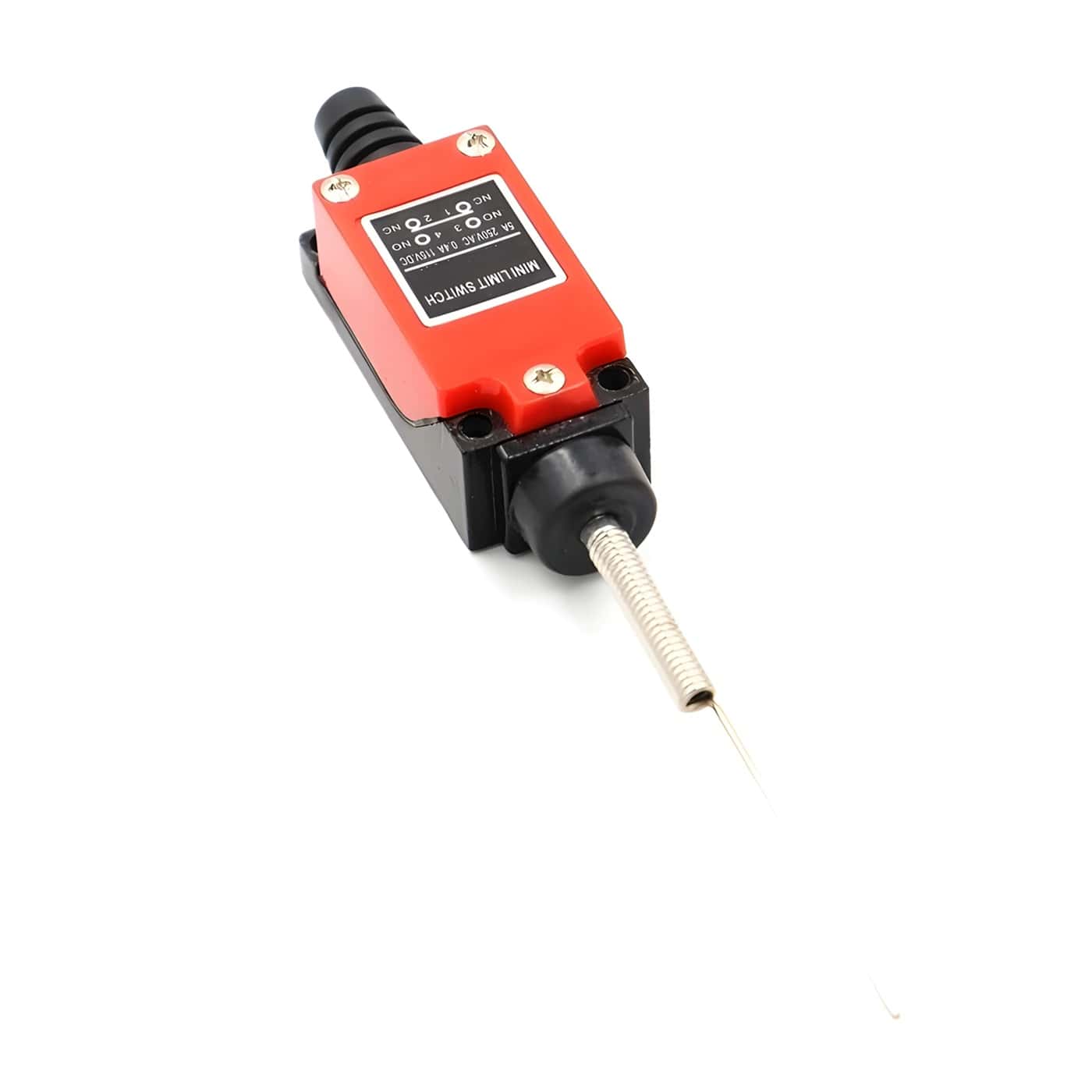

Limit Switch – Self-Reset Travel Touch Controller

📖 Description:

• A rugged, all-metal limit switch with a self-reset mechanism. Designed for reliable position detection and mechanical control, it features a touch actuator for open/close actions, ideal for industrial automation, cnc machines, and safety systems.

🔧 Technical Specifications:

• Type: Travel Limit Switch
• Switch Action: Momentary (Self-reset)
• Actuator Type: Top plunger with roller lever
• Contact Configuration: SPDT (1NO + 1NC)
• Rated Voltage: 250V AC
• Rated Current: 5A
• Mechanical Life: ≥ 1,000,000 operations
• Electrical Life: ≥ 100,000 operations
• Housing Material: All-metal body – durable and wear-resistant
• Protection Level: IP65 (Dust-tight and water-resistant)

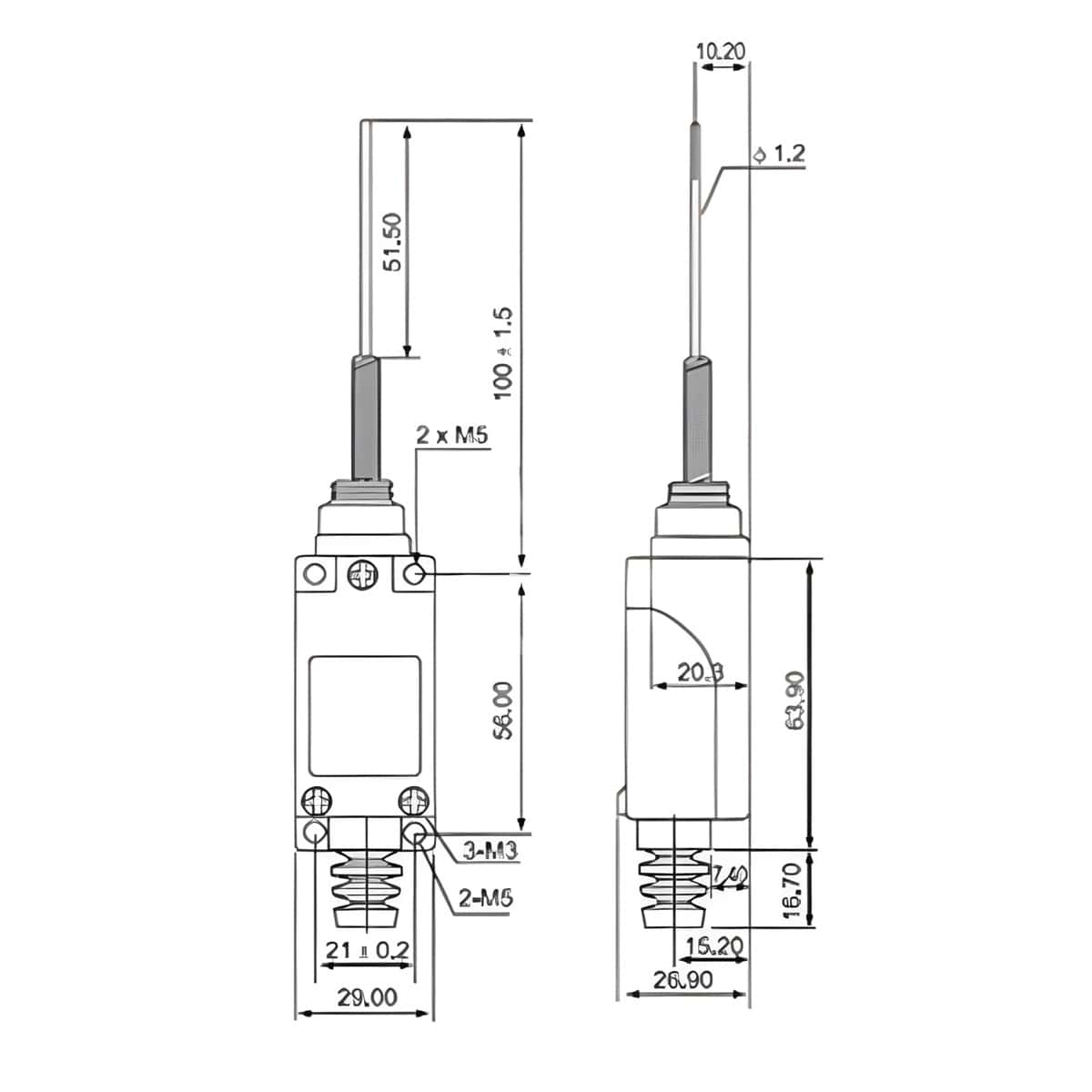

• Installation Method: 2-hole mount
• Operating Temperature: -25°C to +80°C
• Contact Resistance: ≤ 25mΩ
• Insulation Resistance: ≥ 100MΩ (at 500VDC)
• Dielectric Strength: 1000VAC, 50/60Hz for 1 minute

⚙️ Features:

• All-Metal Construction: Rugged design ensures high durability in demanding environments.
• Self-Resetting Mechanism: Automatically returns to original position after being triggered.
• Versatile Mounting: Compact design with standard hole placement for easy installation.
• Reliable Contact System: SPDT contacts for flexible control configurations (NO/NC).
• Water and Dust Resistant: IP65 rated housing for use in industrial and outdoor settings.
• Maintenance-Free: Long mechanical and electrical lifespan with minimal upkeep.
• Precise Operation: High sensitivity and consistent actuation response.

🛠️ Applications:

• Industrial Machinery: Used for end-stop detection and positioning on conveyors, machines, and robotics.
• Automated Systems: Detects object presence or movement in automation lines.
• Safety Interlocks: Prevents machines from operating when guards are open or limits are exceeded.
• Garage and Gate Systems: Triggers open/close functions based on position.
• Packaging Equipment: Ensures operational sequence by detecting parts or containers.
