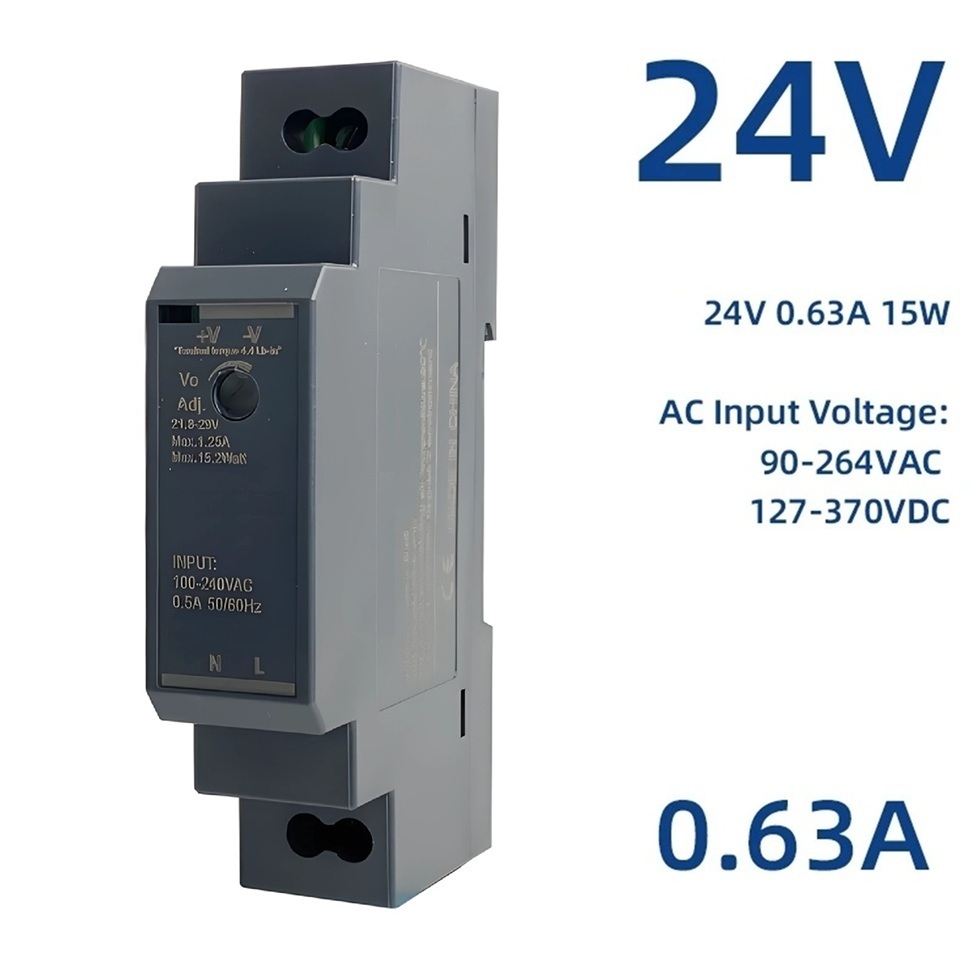

DIN Rail Power Supply (24V, 15W)

📖 Description

• A compact DIN rail-mounted power supply that provides a stable 24V DC output at 15W. Designed for industrial automation and control systems, it features high efficiency, low power consumption, and reliable performance. With a universal AC input range, it ensures wide compatibility and safe operation with built-in overload, overvoltage, and short-circuit protection. Ideal for electrical panels, automation devices, and industrial applications.

🔧 Key Specifications

• Output Voltage: 24V DC
• Output Current: 0.63A
• Output Power: 15.2W
• Voltage Adjustment Range: 21.6V to 29V DC
• Input Voltage Range: 85–264V AC or 120–370V DC
• Efficiency: Up to 86%
• Power Consumption (No Load): <0.3W
• Operating Temperature: -30°C to +70°C
• Dimensions: 17.5mm (W) × 90mm (H) × 54.5mm (D)
• Mounting: DIN rail TS35/7.5 or TS35/15
• Certifications: UL508, UL60950-1, EN61558, EN62368-1
• Protections: Short circuit, overload, overvoltage
• Cooling: Free air convection

⚙️ Features

• Ultra-Slim Design: At just 17.5mm wide, it conserves valuable space in control panels.
• Class II Isolation: Ensures safety without the need for a ground connection.
• LED Indicator: Provides a visual cue for power status.
• Adjustable Output: Fine-tune the output voltage to suit specific requirements.
• Universal Input: Accommodates a wide range of AC and DC input voltages.
