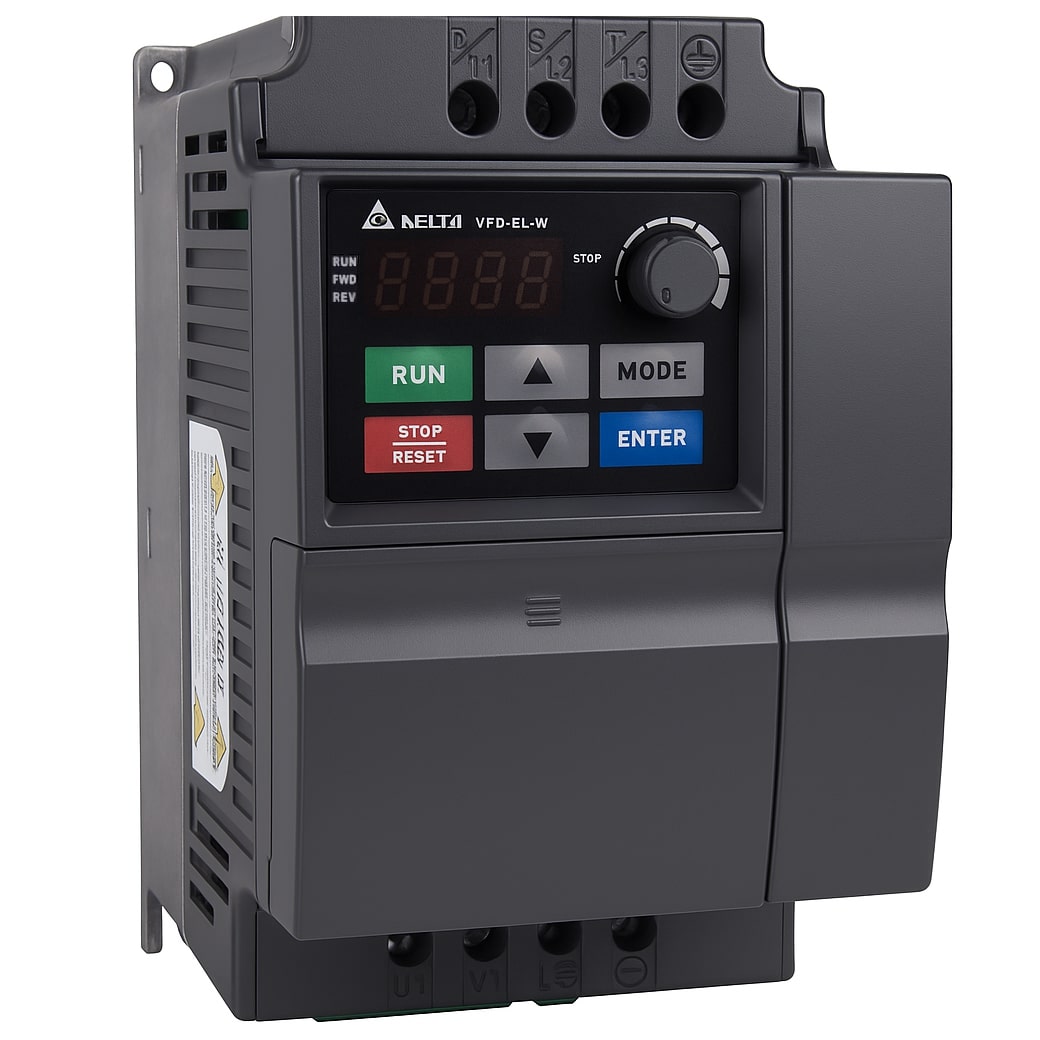

Delta VFD inverter 2HP `1500W 220V single – 3 phase

📖 Description:

•
  Delta VFD is a robust and compact inverter with 1.5 kW (2 HP) capacity and 220 V single-phase input. It is designed for versatile industrial and HVAC applications, offering reliable motor control, integrated protections, and easy setup in a compact footprint.

🔧 Technical Specifications

• Input Voltage: 200–240 V AC single-phase (±10%)

• Output: 3-phase, 1.5 kW (2 HP) motor control, rated output current up to 7.5 A

• Output Frequency Range: 0.1 Hz to 600 Hz

• Control Method: V/f control with adjustable V/f curves; built-in simple PLC and PID functions

• Built-In Protections: Overcurrent, overvoltage, undervoltage, overheating, overload (150% for 60 s)

• Braking Options: Built-in DC braking; external braking resistor supported

• Communications: RS‑485 Modbus RTU via RJ‑45 port

• User Interface: Built-in digital keypad with 4-digit 7-segment LED display; optional external keypad

• Dimensions (Frame B): Approx. 180 × 105 × 135 mm (H×W×D); weight ≈1.6 kg

• Cooling: Internal fan; ambient temperature −10 °C to +50 °C (derating may apply)

• Protection Rating: IP20 enclosure

⚙️ Features

• Slim & Compact Design: Easy integration into control panels; suitable for limited-space environments

• Built-in PLC Functionality: Supports up to 5 steps for simple sequential control without external PLC

• PID Control: Maintains stable process control in variable load applications like pumps and fans

• Flexible Braking Options: DC injection and external resistor support enable fast and safe motor stop

• Enhanced Safety & Protection: Includes thermal, current, and voltage-based protections

• Fieldbus Ready: Standard RS‑485 Modbus RTU; optional communication modules available

🛠️ Applications

• Pumps & Fans: HVAC, water treatment, irrigation, and exhaust systems

• Conveyors & Small Machinery: Efficient speed control for packaging, processing, and automation

• Textile & Woodworking Equipment: Smooth operation of variable-speed motors

• General Industrial Use: Perfect for OEMs, workshops, and automated control panels

• Energy Saving Systems: Reduces motor wear and energy consumption with optimized speed control
