Delta PLC 14SS2

📖 Description:

•

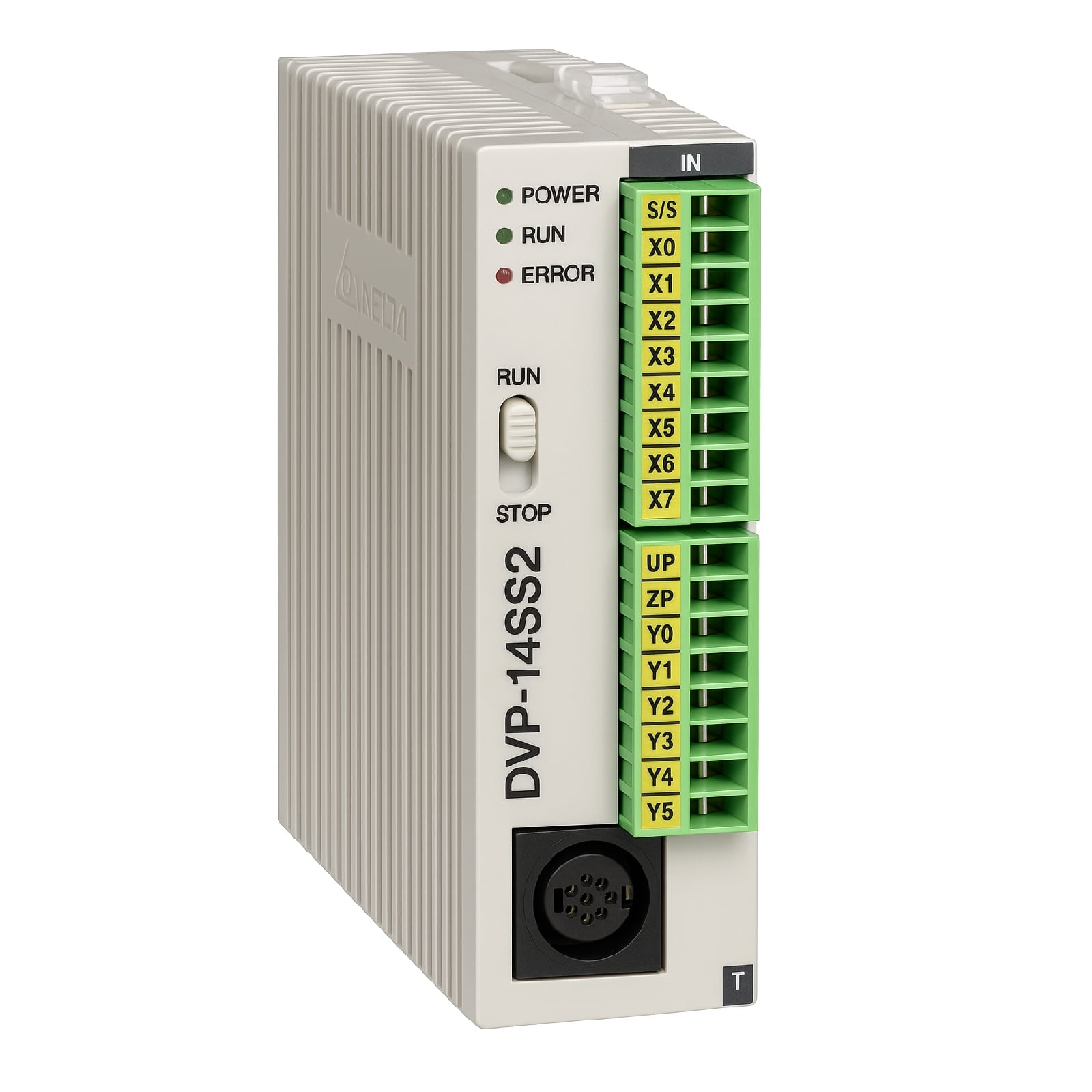

  Delta DVP-14SS2R is a compact, slim 14-point programmable logic controller (PLC) featuring 8 digital inputs and 6 relay outputs, powered by 24 VDC. Belonging to the DVP‑SS2 series, it supports basic to intermediate industrial automation tasks with reliable communications and fast execution speed.

🔧 Technical Specifications

• I/O Configuration: 8 × digital inputs (sink/source), 6 × relay outputs

• Supply Voltage: 20.4–28.8 VDC (nominal 24 VDC) 

• CPU Points: 14 (8DI + 6DO) 

• Maximum Expandable I/O: Up to 494 total points (14 + expansion) 

• Program Memory: ~8 k steps (~8K words) 

• Data Memory: ~5 K words

• High-Speed I/O:

  • 4 high-speed pulse outputs, up to 10 kHz

  • 8 high-speed counters, up to 20 kHz/4 points 

• Communications: Built-in RS-232 and RS-485 (Modbus ASCII/RTU; can act as master/slave) 

• Execution Times: Very fast – typical OFF→ON ~3.5 µs, ON→OFF ~20 µs 

• Operating Temperature Range: 0 °C to 55 °C; humidity tolerance up to ~95% RH

• Mounting Style: DIN-rail slim type, IP20 chassis rating 

⚙️ Features

• Compact & Scalable: Slim form factor with I/O expansion up to 494 points

• Performance-Tuned: Fast scanning and response suited for real-time control

• Advanced I/O Options: Pulse outputs and high-speed counters for motion and digital counting applications

• Communication Ready: Supports dual-protocol RS-232/RS-485 for easy integration via Modbus ASCII/RTU

• Efficient Memory: Ample program and data storage for logic, timers, counters

• Environmental Durability: Suitable for industrial settings with wide temperature/humidity ranges

🛠️ Applications

• Discrete Control: Suitable for small conveyor systems, packaging machinery, motor control

• Motion & Count-Based Processes: Pulse outputs/counters enable use in speed measurement, gear counting, basic motion tasks

• Building Automation: Can control lighting, HVAC components, valves, alarm systems

• OEM Integration: Compact enough for use in control panels for machinery, kiosks, or vending systems

• Education & Prototyping: Ideal for labs and training setups needing reliable PLC capabilities
