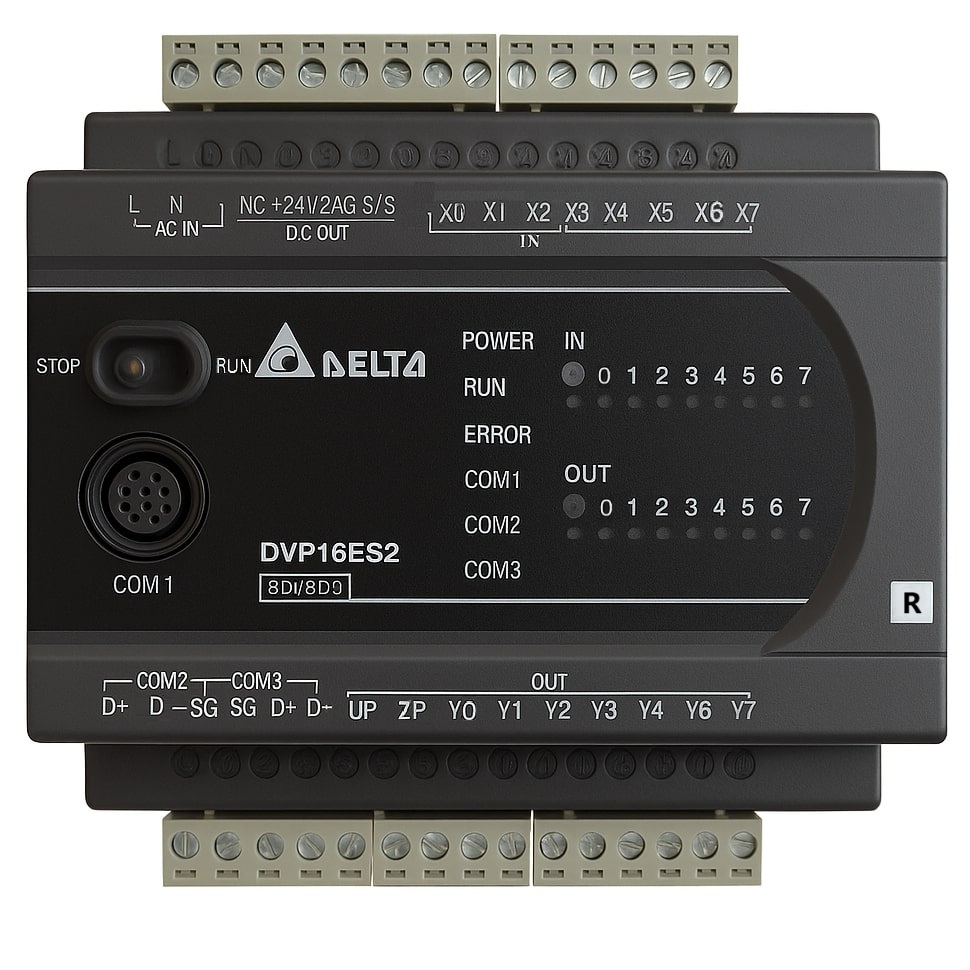

Delta PLC DVP16ES2-R

📖 Description

• The DVP16ES200R is a compact and reliable programmable logic controller (PLC) from Delta’s ES2 series. It provides 8 digital inputs and 8 relay outputs, making it ideal for small-scale automation applications. This model offers high-speed processing, stable performance, and flexible expansion options, making it a cost-effective solution for industrial control.

🔧 Technical Specifications

• Model: DVP16ES2-R

• Power Supply: 100–240 VAC, 50/60 Hz

• Digital I/O: 8 inputs + 8 relay outputs

• Program Memory: 16k steps

• Data Registers: Up to 10k words

• Communication Ports: 1× RS‑232, 2× RS‑485; supports Modbus RTU and PLC Link

• High-Speed I/O: 8 channels (2×100 kHz, 6×10 kHz) with motion/task support

• I/O Ratings: Inputs: 24 VDC, 5 mA; Outputs: 0.5 A per point, 4 A common (relay)

• Electrical Isolation: 1,500 VAC isolation between power and I/O; insulation >5 MΩ

• Immunity: ESD 8 kV; EFT 2 kV; Surge 1 kV; RF 10 V/m (26 MHz–1 GHz)

• Operating Conditions: 0–55 °C, 5%–95% RH non-condensing

• Mounting: 35 mm DIN rail; Dimensions ~105 × 78 × 61.5 mm

⚙️ Features

• Compact and modular: Easy DIN-rail mounting with options to expand with I/O and analog modules

• High-speed I/O & motion-ready: Supports pulse control, electronic gear, position control, and S-curve acceleration features

• Flexible I/O logic: Inputs configurable as sink or source (NPN/PNP) via software

• Built-in communications: RS‑232/485 interfaces with Modbus and PLC Link facilitate network integration

• Safe and robust: High electrical isolation and EMI/ESD resistance ensure reliable operation in industrial environments

• Secure programming: Offers up to 4-level password protection and efficient, secure operation

🛠️ Applications

• Basic sequential control: Ideal for conveyors, packaging, textile machines, and injection molding systems

• Motion control & pulse tasks: Suitable for stepper and servo applications with pulse output and encoder input support

• Data acquisition & machine interface: Relay outputs control motors, solenoids, alarms; inputs read sensors and switches

• Protocol communication: Used in Modbus-enabled networks and multi-PLC systems via PLC Link

• Noise-critical environments: EMI/ESD shielding makes it suitable for factories, HVAC systems, and building automation
