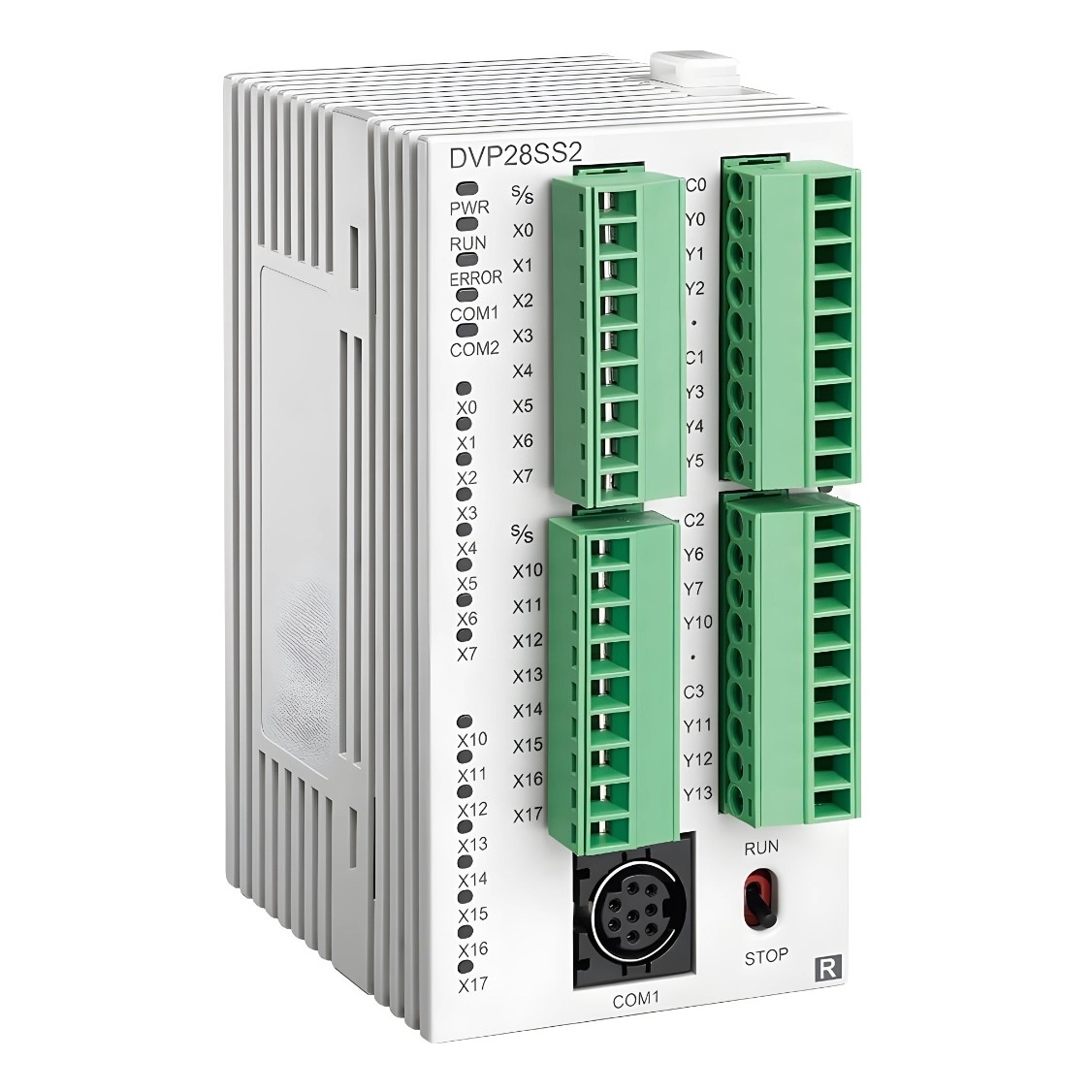

Delta PLC DVP28SS2

📖 Description

• The DVP28SS211R is a compact and cost-effective programmable logic controller (PLC) from Delta’s SS2 series. It features 16 digital inputs and 12 relay outputs, designed for basic to intermediate automation applications. This model supports high-speed counters and pulse output, making it suitable for motion and logic control in small machines and systems.

🔧 Technical Specifications

• Power Supply: 24 V DC (range: 20.4–28.8 V), reverse polarity protected

• Digital I/O: 16 inputs + 12 relay outputs

• Input Voltage: 24 V DC (typical 5 mA per input)

• Input Frequency: Max. 10 kHz for high-speed counters

• Output Type: Relay, 1.5 A per point, 4 A common; rated at 250 VAC / 30 V DC

• Program Capacity: 8,000 steps

• Data Registers: 5,000 words

• Communication Ports: RS-232 and RS-485, supports Modbus RTU and Delta PLC Link

• Isolation Protection: 1500 VAC isolation between power and I/O

• Noise Immunity: ESD 8 kV (air), EFT 2 kV, surge 1 kV

• Operating Temperature: 0 °C to 55 °C

• Storage Temperature: –25 °C to +70 °C

• Humidity: 5%–95% RH (non-condensing)

• Mounting: DIN rail (35 mm)

• Dimensions: 96 × 90 × 46 mm

• Protection Class: IP20

⚙️ Features

• Slim, compact design for space-saving control panels

• Built-in high-speed counters and pulse outputs for motion control

• Configurable input logic (sink/source)

• Built-in communication ports for easy integration into industrial networks

• Reliable relay outputs for controlling a wide range of loads

• Supports expansion with I/O and special function modules

• High immunity to electrical noise and surges

• LED indicators for I/O status monitoring

🛠️ Applications

• Industrial Automation: Conveyors, CNC machines, textile machines

• Building Management: Lighting, HVAC, and energy monitoring

• Process Control: Pumps, valves, fans, alarms

• OEM Equipment: Custom control panels and automation machinery

• Modular Systems: Expandable architecture for future scalability
