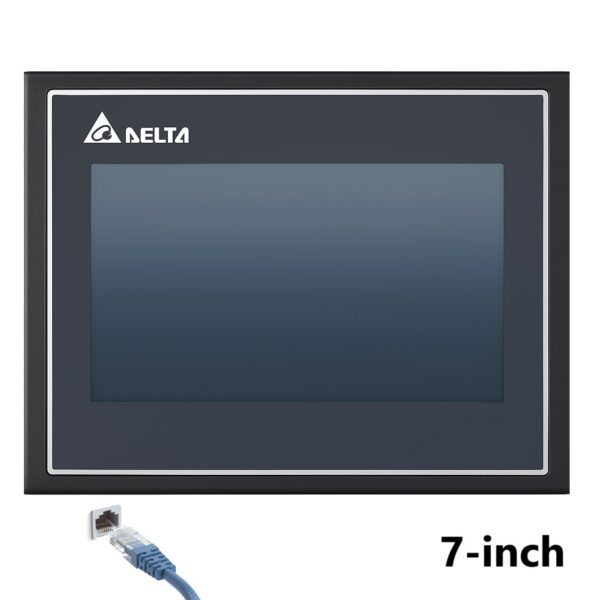

Delta Screen Display 7″ LAN Support

📖 Description

• Delta’s 7-inch TFT LCD display with 480×800 resolution, one USB port, RS-232/422/485 ports, and one Ethernet port. Supports DOPSoft software. Ideal for basic industrial control interfaces.

🔧 Technical Specifications

• Display: 7″ TFT LCD, 800 × 480 resolution, 65K colors, ~400 cd/m² brightness

• Touchscreen: 4-wire resistive

• CPU & Memory: ARM Cortex‑A8 @ 800 MHz, 256 MB RAM, 256 MB flash

• Interfaces:

  • USB Host ×1 (for USB storage)

  • USB Device ×1 (for PC connection)

  • Ethernet Port (RJ45) – 10/100 Mbps

  • Serial Ports:

    • COM1: RS-232/RS-485 (selectable)

    • COM2: RS-422/RS-485

• Power Supply: 24 V DC ±15%, ~7 W power consumption

• Buzzer: Built-in (2–4 kHz, 80 dB)

• Mounting & Dimensions:

  • Panel Cutout: 189 × 138 mm

  • Overall: 207 × 155 × 43 mm

  • Weight: ~480 g

• Environment: 0–50 °C, 10–90% RH (non-condensing)

• Protection: IP65 front panel, industrial isolation and noise immunity

⚙️ Features

• Ethernet Support: Enables fast communication with PLCs, SCADA, remote monitoring, and file transfers

• Multiple Communication Ports: USB, RS-232, RS-422/485, and Ethernet for versatile system integration

• Enhanced Performance: Faster CPU and higher memory for larger projects and smoother UI

• Alarm & Recipe Handling: Built-in functions for alarms, trends, history, and recipes

• Programmed with DOPSoft or DIAView: Supports Lua scripting and network features

🛠️ Applications

• • Industrial Networking: Easily integrates into Ethernet-based systems (Modbus TCP, etc.)

  • Remote Monitoring: View and control machines over LAN

  • Automation Panels: Ideal for conveyor systems, control cabinets, and production lines

  • IoT Gateways: Used as a data bridge between PLCs and cloud/SCADA systems
