DH48S-2Z AC220V Digital Time Relay

📖 Description

• The DH48S-2Z is a digital time relay that operates on AC220V and features a clear LED display for easy time setting. It supports dual output (2Z) and offers accurate timing control for a wide range of industrial automation tasks.

 🔧 Key Features

• Model: DH48S-2Z-H220VAC
• Supply Voltage: AC 220V, 50/60Hz

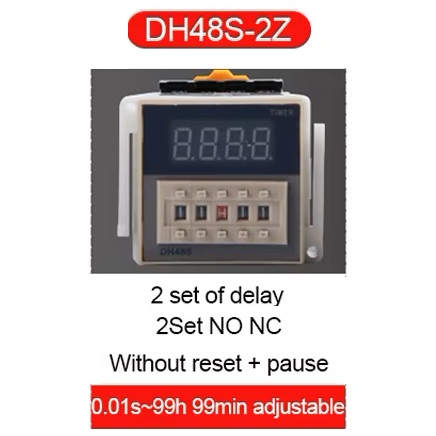

• Timing Range: Adjustable from 0.01 seconds to 99 hours and 99 minutes
• Contact Configuration: Double Pole Double Throw (DPDT)
• Contact Capacity: 3A at 250V AC or 5A at 28V DC

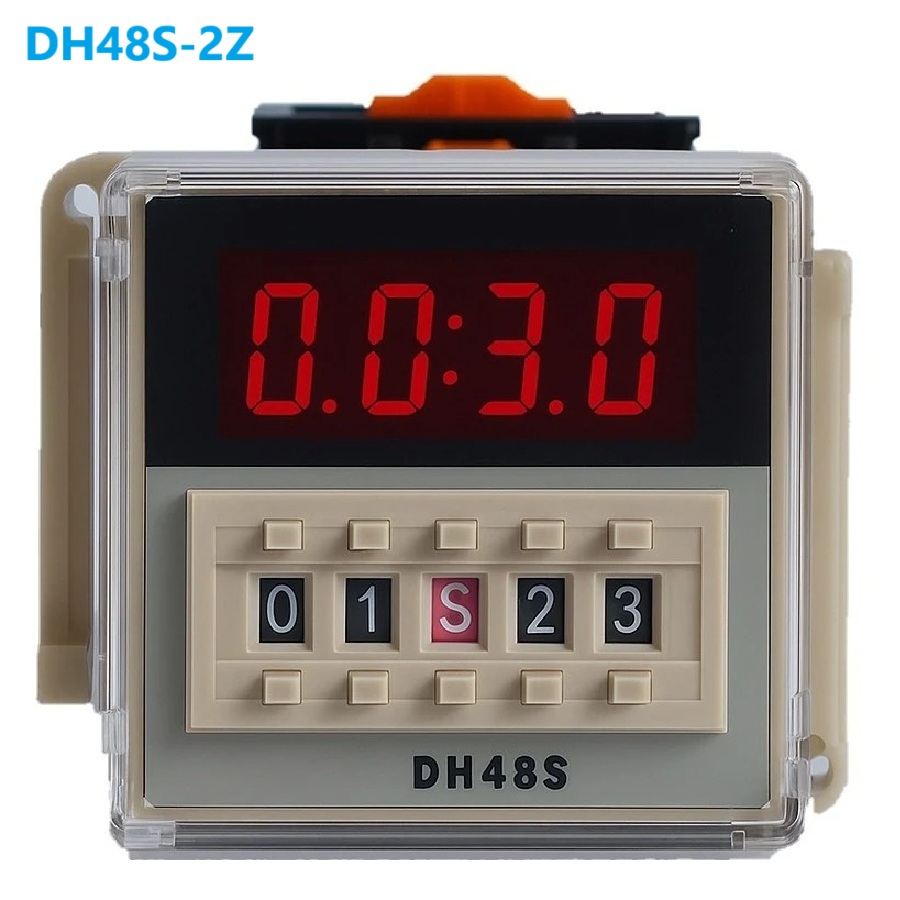

• Display: 8-segment, 4-digit LED display for clear visibility
• Setting Method: Dial switch for easy and precise time setting
• Power Consumption: Maximum of 2W
• Repeat Accuracy: ±0.3% or ±0.05 seconds
• Setting Error: ±0.5% or ±0.05 seconds

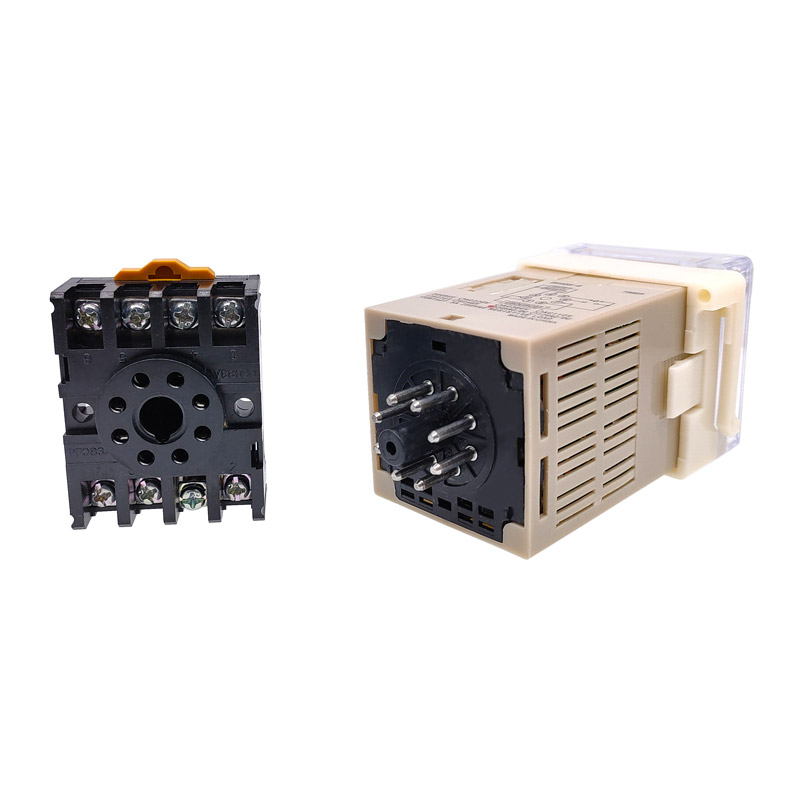

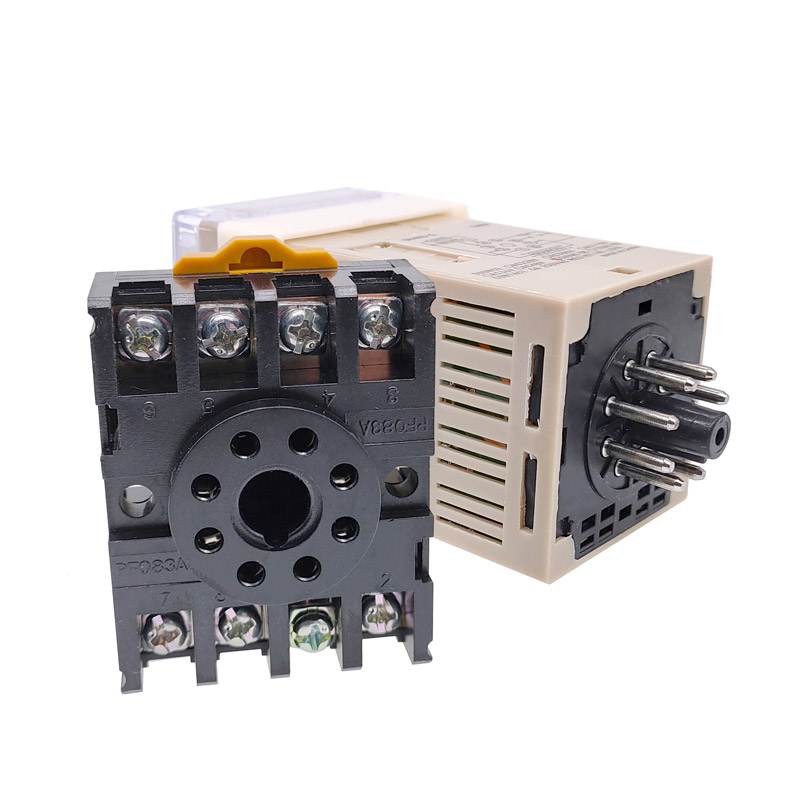

• Mounting: Panel or DIN rail mounting, compatible with PF083A and PF083A-E sockets
• Dimensions: 48 x 48 x 97.4 mm
• Operating Conditions: Temperature range of 0 to 50°C and up to 95% relative humidity (non-condensing)​

🛠️ Applications

• Industrial Automation: Controlling machinery operations with precise timing sequences
• HVAC Systems: Managing timed operations for heating, ventilation, and air conditioning equipment
• Lighting Control: Automating lighting systems with scheduled on/off cycles
• Pumping Systems: Regulating pump operations to prevent overuse or to maintain specific flow rates
• TIMER​
