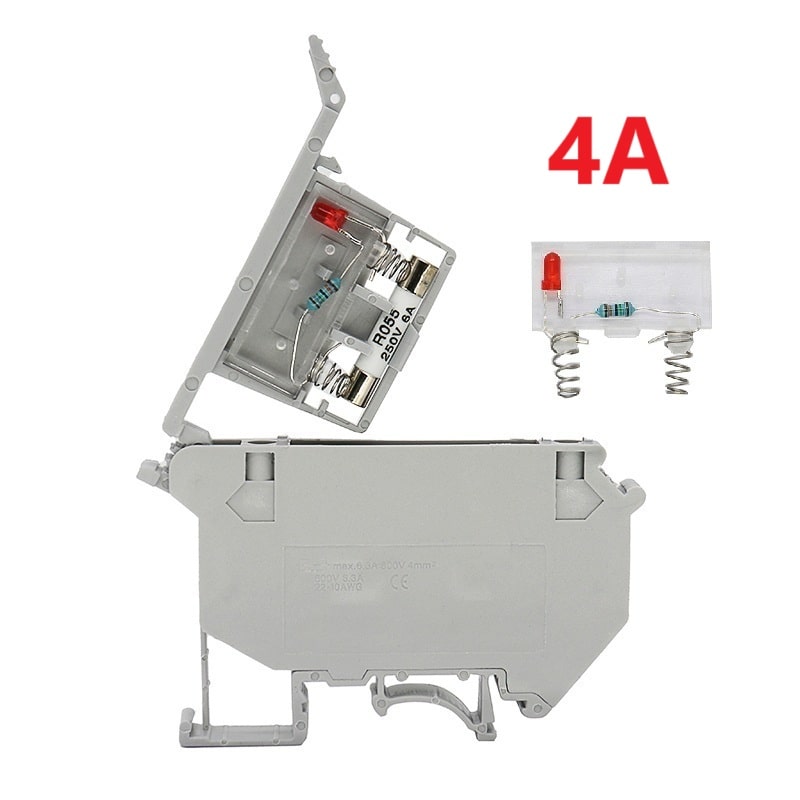

DIN Rail Fuse Terminal Block with LED Indicator 4A

📖 Description:

• A DIN rail-mounted fuse terminal block designed for circuit protection and status indication. It features a built-in LED indicator that lights up when the fuse blows, allowing for quick troubleshooting. Suitable for 220V systems, it provides reliable protection in industrial control panels and electrical distribution applications.

🔧 Technical Specifications

• Mounting Type: DIN rail (NS 35/7.5 or NS 35/15)
• Connection Method: Screw terminal
• Number of Levels: 1
• Number of Connections: 2
• Conductor Cross-Section:
  • Rigid: 0.2 mm² to 4 mm²
  • Flexible: 0.2 mm² to 4 mm²
  • AWG: 24 to 12
• Rated Surge Voltage: 6 kV
• Pollution Degree: 3
• Overvoltage Category: III
• Fuse Compatibility: 5 x 20 mm, 5 x 25 mm, 5 x 30 mm glass fuses
• LED Indicator Voltage: Available in 24V and 220V variants
• Insulating Material: PA (Polyamide)
• Flammability Rating: UL 94 V-0
• Color Options: Black, Gray
• Dimensions:
  • Width: 8.2 mm
  • Height: 72.5 mm
  • Depth: 56.5 mm (on NS 35/7.5 rail)
• Screw Thread: M3
• Tightening Torque: 0.6 to 0.8 Nm
• Stripping Length: 8 mm​

⚙️ Features

• Integrated LED Indicator: Provides immediate visual feedback when a fuse has blown, reducing downtime during maintenance.
• Compact Design: Slim profile (8.2 mm width) allows for high-density mounting on DIN rails.
• Versatile Fuse Accommodation: Supports multiple fuse sizes, offering flexibility for various circuit protection requirements.
• High Voltage and Current Ratings: Suitable for applications up to 800 V and 6.3 A, accommodating a wide range of industrial needs.
• Durable Construction: Made from high-quality polyamide with a flammability rating of UL 94 V-0, ensuring safety and longevity.
• Ease of Installation: Screw terminal connections and standard DIN rail mounting facilitate quick and secure installation.​

🛠️ Applications

• Industrial Control Panels: Protection of control circuits in manufacturing and processing equipment.
• Automation Systems: Safeguarding of sensors, actuators, and other automation components.
• Power Distribution Units: Overcurrent protection in distribution boards and switchgear.
• Building Automation: Circuit protection in HVAC systems, lighting controls, and security systems.
