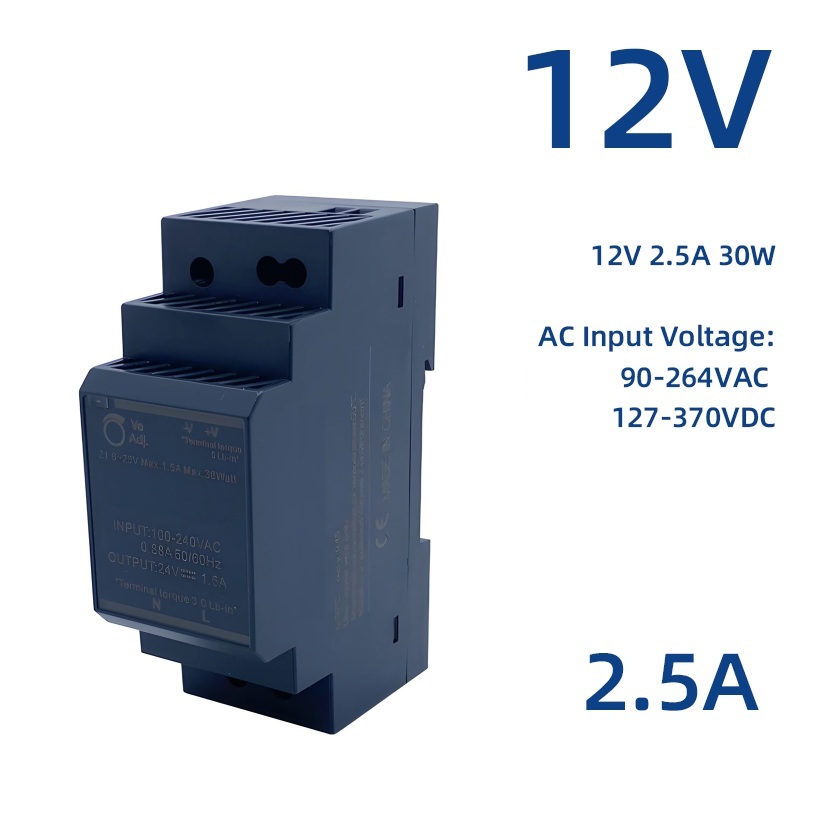

DIN Rail Power Supply (12V, 30W)

📖 Description

• A compact DIN rail-mounted power supply that provides a stable 12V DC output at 30W. Designed for industrial automation and control systems, it features high efficiency, low power consumption, and reliable performance. With a universal AC input range, it ensures wide compatibility and safe operation with built-in overload, overvoltage, and short-circuit protection. Ideal for electrical panels, automation devices, and industrial applications.

🔧 Technical Specifications

• Output Voltage: 12V DC
• Output Power: 30W
• Output Current: 2.5A
• Input Voltage Range: 85 – 264V AC (47–63Hz) / 120 – 370V DC
• Efficiency: ≥ 85%
• Ripple & Noise: ≤ 120mVp-p
• Voltage Tolerance: ±1%
• Overload Protection: 105% – 150% of rated load (auto-recovery)
• Overvoltage Protection: 13.8–16.2V
• Short Circuit Protection: Auto recovery
• Working Temperature: -20°C to +60°C
• Cooling Method: Natural air convection
• Mounting: 35mm DIN rail (TS-35/7.5 or TS-35/15)
• Dimensions (approx.): 90 x 54 x 58 mm (W x H x D)
• Housing Material: Flame-retardant plastic
• Standards Compliance: CE, RoHS certified

⚙️ Features

• Compact DIN Rail Design: Ideal for industrial control cabinets and automation panels.
• Reliable Power Output: Provides stable 12V DC output for sensitive electronics.
• Wide Input Range: Supports both AC and DC inputs for versatile installation.
• Built-in Protections: Safeguards against overloads, overvoltage, and short circuits.
• Efficient Cooling: Fanless design using natural air convection, reducing noise and failure points.
• LED Indicator: Power status at a glance for quick diagnostics.
• Industrial-grade Durability: Designed for continuous operation in harsh environments.

🛠️ Applications

• Industrial Automation: Powers sensors, controllers, PLCs, HMIs, and relays.
• Building Automation: Suitable for access control, lighting control, and monitoring systems.
• Smart Home Systems: Supplies power for central hubs and distributed modules.
• CCTV and Security: Ideal for powering 12V surveillance cameras and DVRs.
• Laboratory Equipment: Stable output for sensitive instruments and electronics.
