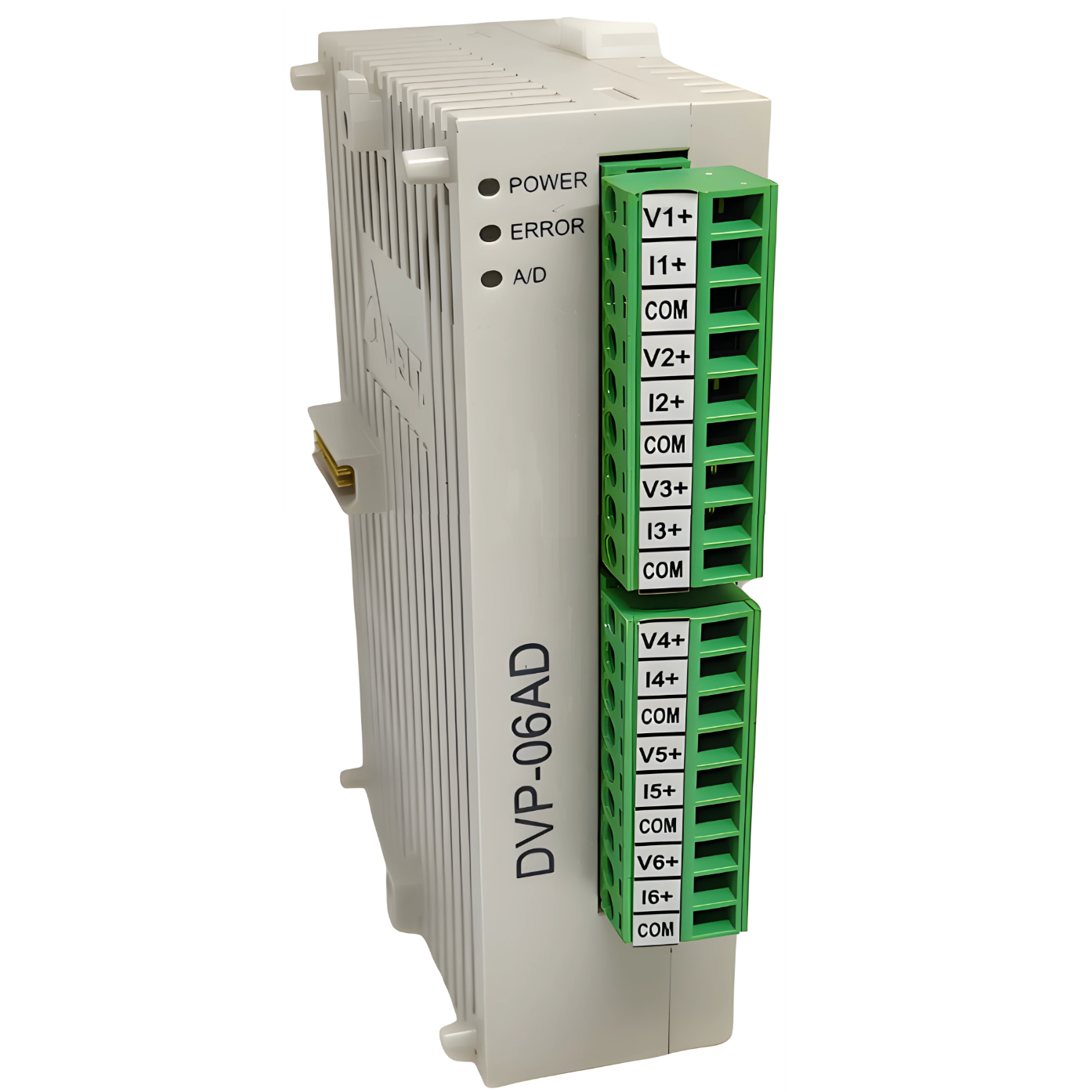

DVP-06AD

📖 Description

• 6-channel analog input module for Delta DVP PLCs. Supports 0–10V or 0–20mA signals with 12-bit resolution. DIN rail mount, RS-485 communication. Ideal for sensor data acquisition.

🔧 Technical Specifications

• Power Supply: 24 V DC (20.4–28.8 V, with reverse polarity protection)

• Analog Inputs: 6 single-ended or 3 differential channels

  • Voltage range: −10 V to +10 V

  • Current range: 0–20 mA

• Resolution: 14-bit (~1.2 mV per LSB)

• Accuracy: ±0.2% FS typical (at 25°C)

• Input Impedance: ≥200 kΩ for voltage, ~250 Ω for current

• Sampling Time: ~4 ms per channel (total ~24 ms for all channels)

• Isolation: Reinforced insulation between module and CPU; channels share common analog ground

• Communication Interface: Via Delta proprietary rack bus (when mounted on CPU rack)

• Power Consumption: Approximately 2.5 W

• Mounting: Din-rail or slot-mounted alongside DVP Series CPUs

• Dimensions: Approx. 96 × 90 × 25 mm

• Operating Conditions: 0–55 °C; 5–95% RH, non-condensing; IP20

⚙️ Features

• Six-channel Analog Input: Supports mixed signal types (voltage and current) on the same module

• Differential Input Support: Ideal for sensors requiring common-mode noise rejection

• High Sampling Precision: 14-bit resolution for accurate process measurements

• Fast Sample Rate: Full scan in about 24 ms for responsive analog feedback control

• Rail-mounted or Din-rail Slot: Flexible installation in compact control panels

• Seamless Integration: Plugs directly into DVP CPU or runs standalone via rack connection

🛠️ Applications

• Industrial Process Control: Monitor temperature, pressure, flow, and level sensors

• Dispenser & Mixing Systems: Track analog signals from chemical dosing or blending systems

• HVAC & Environmental Logging: Connect temperature and humidity transducers

• Energy Monitoring Systems: Measure voltage or current transducer outputs

• Automation & Test Systems: Provide multiple analog inputs for custom data acquisition

• OEM Equipment: Embedded analog sensing for machinery factory control systems
