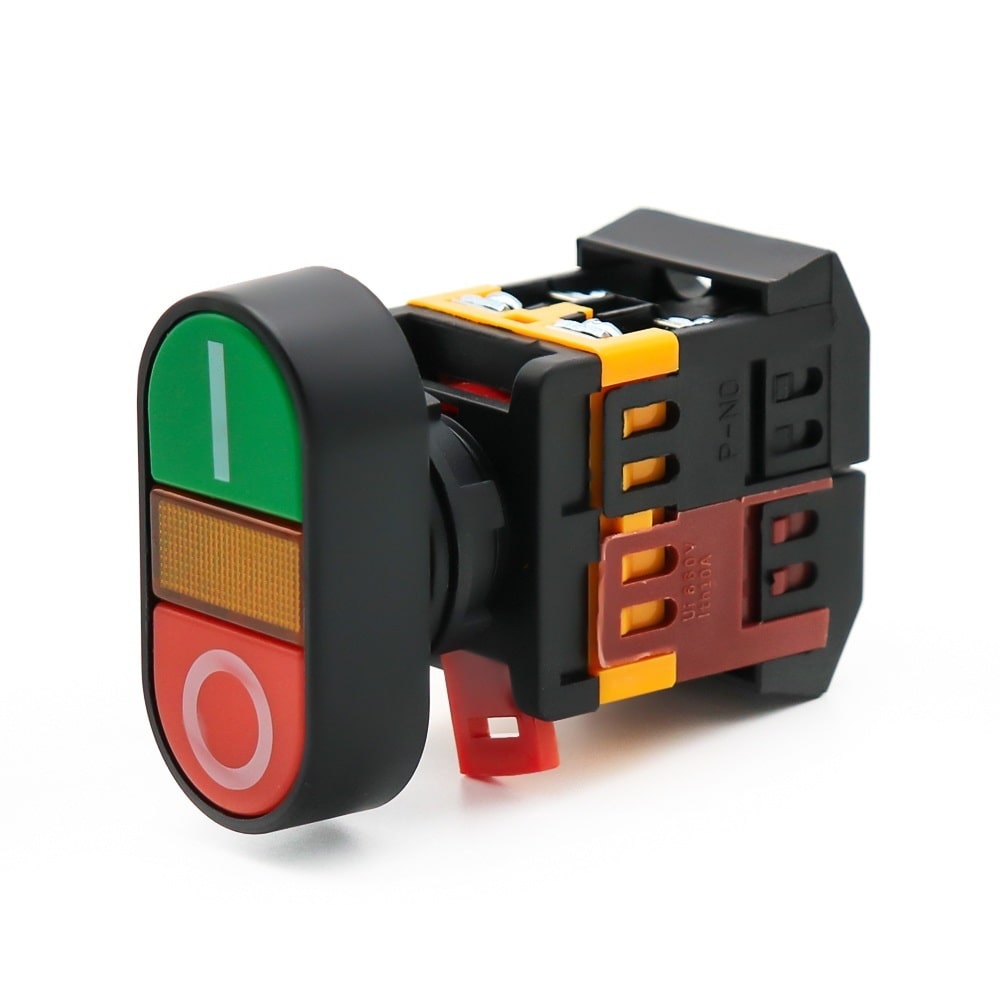

Momentary Double Push Button Switch with LED – ON/OFF START STOP (1NO+1NC)

📖Description:

• The push button switch features a dual-head design with ON/OFF or START/STOP functionality. It includes one normally open (1NO) and one normally closed (1NC) contact for flexible control. Equipped with a yellow 24V LED indicator lamp, it provides clear visual feedback. Compatible with 220V AC, it is ideal for industrial control panels, machinery, and automation systems.

📊Specifications:

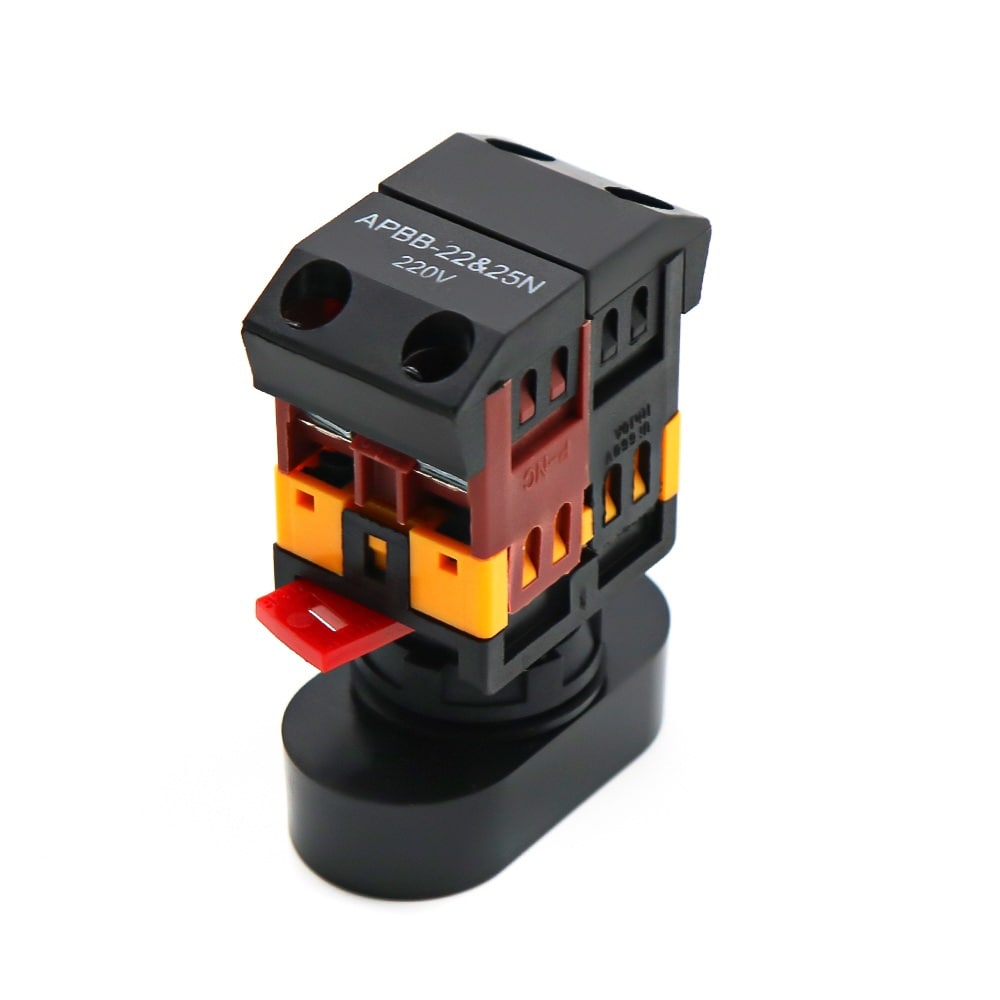

• Model: APBB-22N​
• Mounting Hole Diameter: 22mm
• Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC)​
• Operation Type: Momentary (spring return)​
• Rated Voltage: AC 220V​
• LED Indicator Voltage: 24V DC
• Current Rating: 10A
• Rated Insulation Voltage: 600V​
• Panel Cutout Diameter: 22mm​

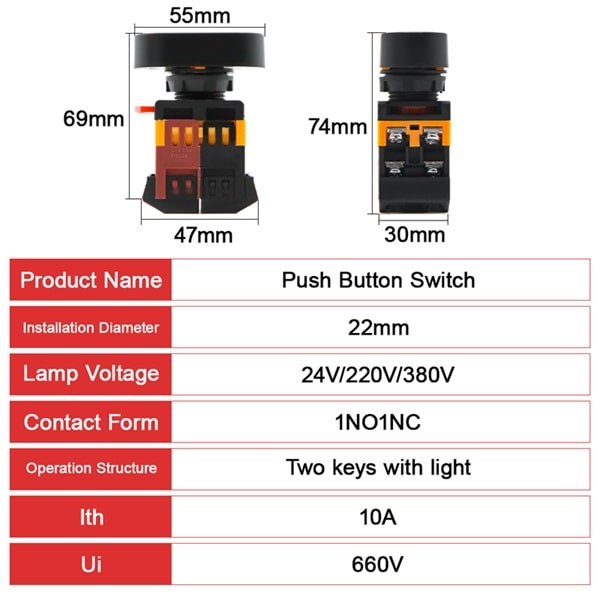

• Overall Dimensions: Approximately 74 x 56 x 30 mm
• Button Colors: Green (Start), Red (Stop)​
• LED Indicator Color: Yellow​
• Housing Material: Fireproof plastic
• Contact Material: Silver alloy​

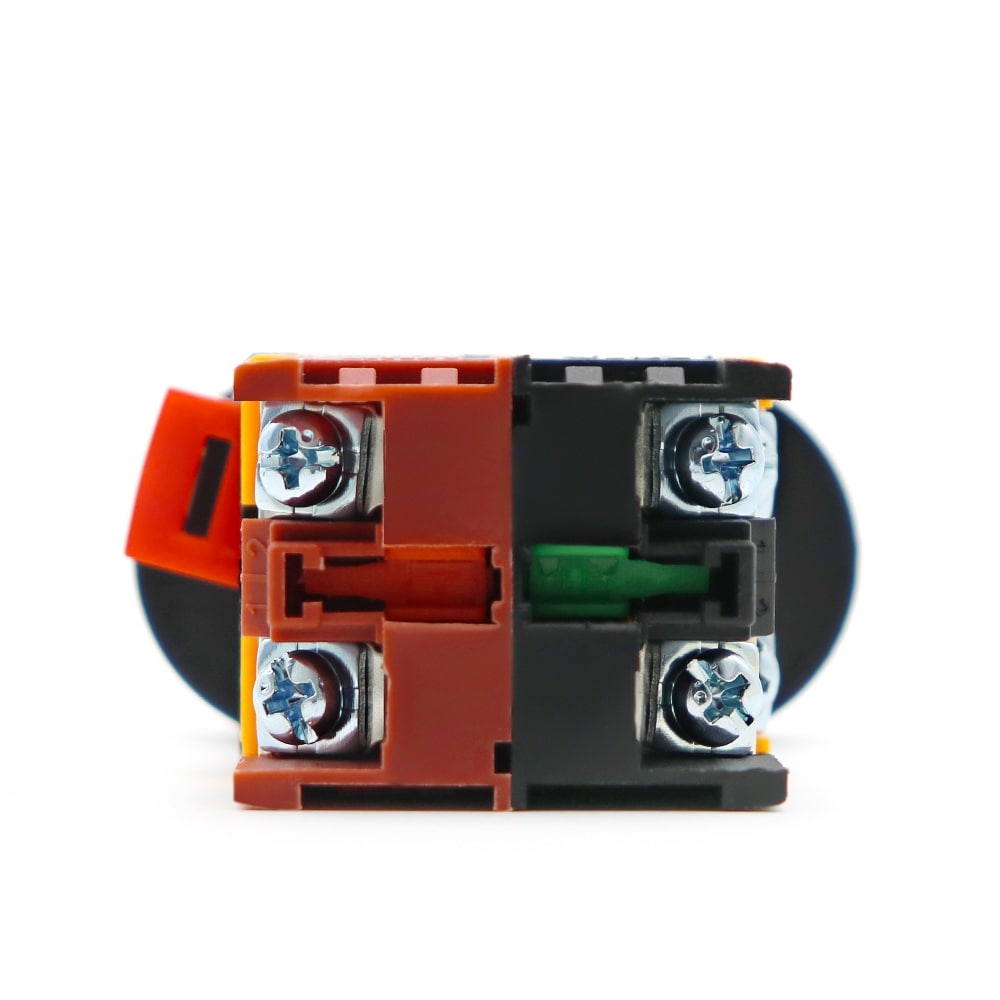

• Terminal Type: Screw terminals​
• Electrical Life: 500,000 cycles
• Mechanical Life: 1,000,000 cycles​
• Operating Temperature Range: -25°C to +70°C​
• Operating Humidity: ≤85% RH​
• Protection Rating: IP40​

⚙️Key Features:

• Dual Functionality: Combines Start (green) and Stop (red) buttons in a single unit.​
• LED Indicator: Built-in yellow LED for visual status indication.​
• Compact Design: Space-saving form factor suitable for control panels.​
• Durable Construction: High-quality materials ensure longevity and reliability.​

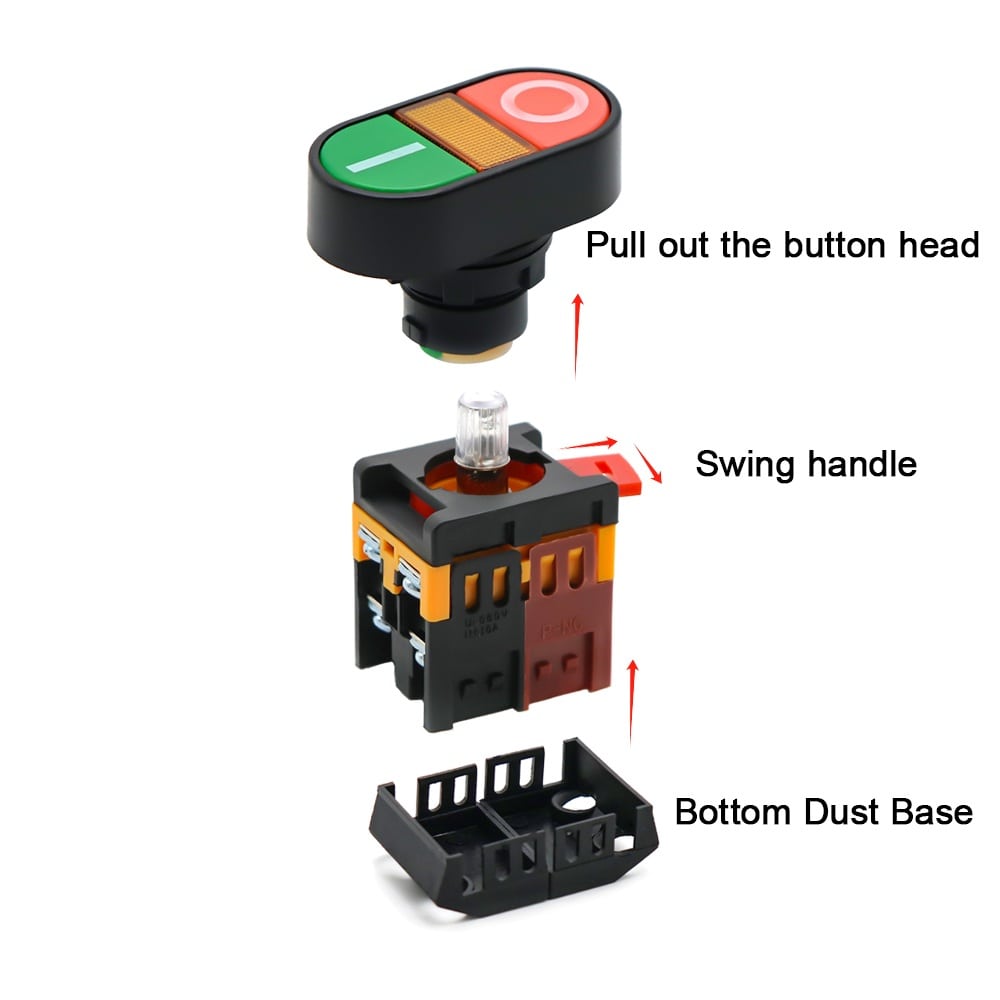

• Easy Installation: Screw terminal connections for straightforward wiring.​

🛠️Common Applications:

• Industrial Machinery: Control of motors, conveyors, and other equipment.​
• Automation Systems: Start/stop functions in automated processes.​
• Control Panels: Integration into electrical control cabinets.​
• Safety Systems: Emergency stop or reset functions.​
