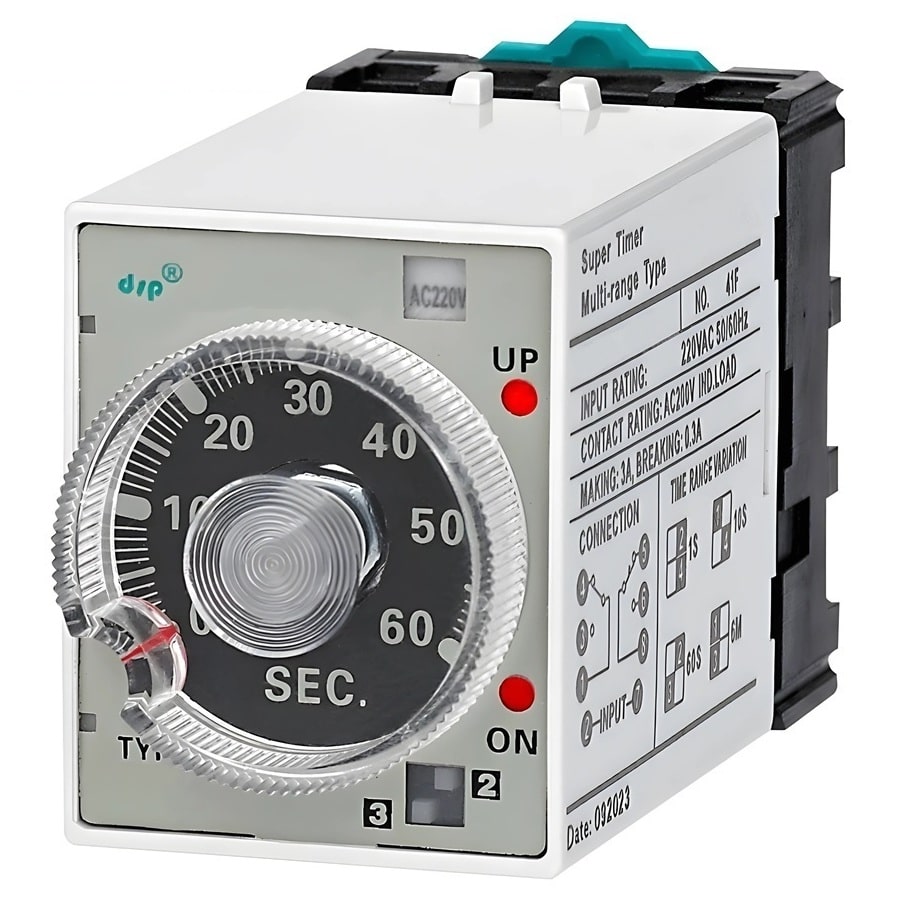

On-Delay Multifunctional Time Relay  0.5sec – 3min.

📖 Description

• multifunctional time relay designed for precise on-delay timing control in industrial automation and electrical systems. It supports multiple timing functions, ensuring flexibility for various applications. Operates on AC power supply and comes with a socket for easy installation. Ideal for motor control, lighting systems, and automation processes, it provides accurate timing and reliable performance in diverse environments.

⚙️Key Features

• Power Supply: AC 220V
• Timing Range: Adjustable from 0.5 seconds to 3 minutes
• Contact Configuration: DPDT (Double Pole Double Throw)
• Mounting: Compatible with PF083A, PF085A, and US-08 sockets for easy installation
• Dimensions: 50 x 40 x 57.5 mm
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Operating Humidity: Up to 95% RH, non-condensing
• Mechanical Life: 1 million operations
• Electrical Life: 100,000 operations​

🛠️ Applications

• Industrial Automation: Controlling machinery start-up sequences and delays
• HVAC Systems: Managing timed operations for heating, ventilation, and air conditioning equipment
• Electrical Panels: Implementing delay functions in control circuits

🔧Specifications

• Operating Frequency…….: 50/60 Hz.
  Operating Power……………: <4VA
  Operating Temperature..: -20°C…..+55°C
  Display:………………………….: On led and Out led
  Connection Type…………..: 8 pin socket
  Weight…………………………..: Max.80gr.
  Contact………………..:5A/250V AC (Resistive Load)
  Mounting………………………: Vertical assembled in
  the panel or assembled on the din rail
  Operating Altitude……….: <2000meter
  Cable Diameter……………..: 2,5mm²
