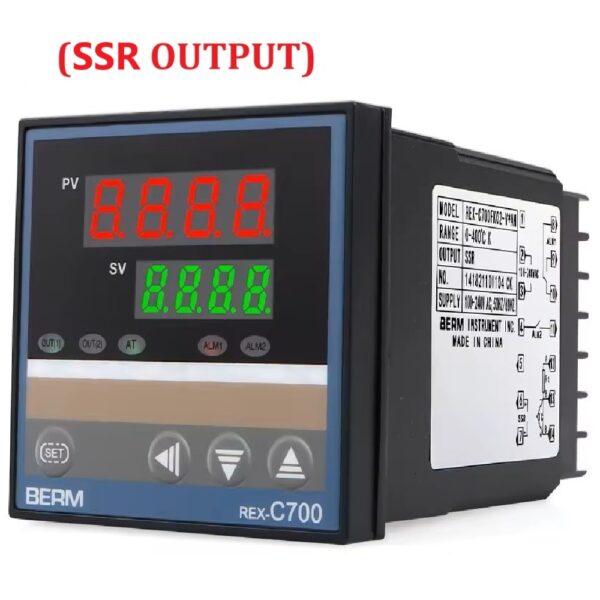

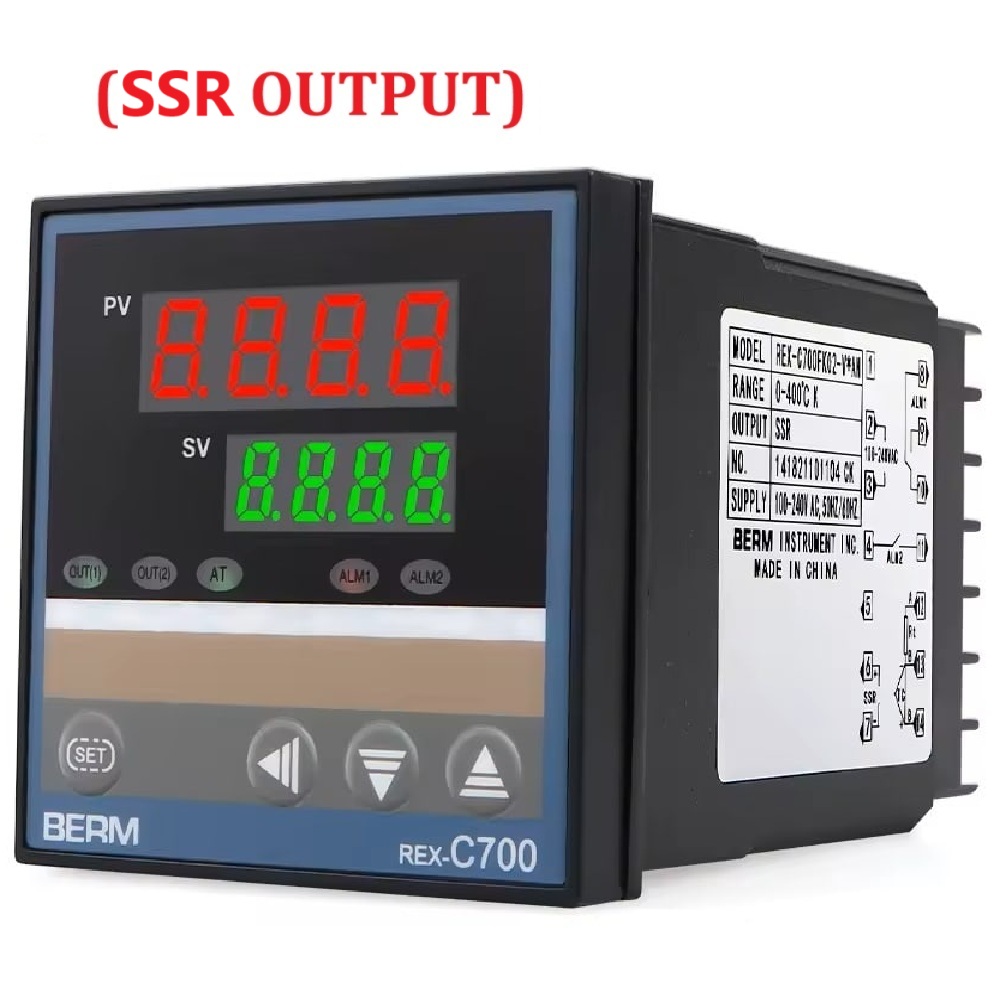

REX-C700 Dual Digital PID Temperature Controller (72×72mm) (SSR OUTPUT)

📖 Description

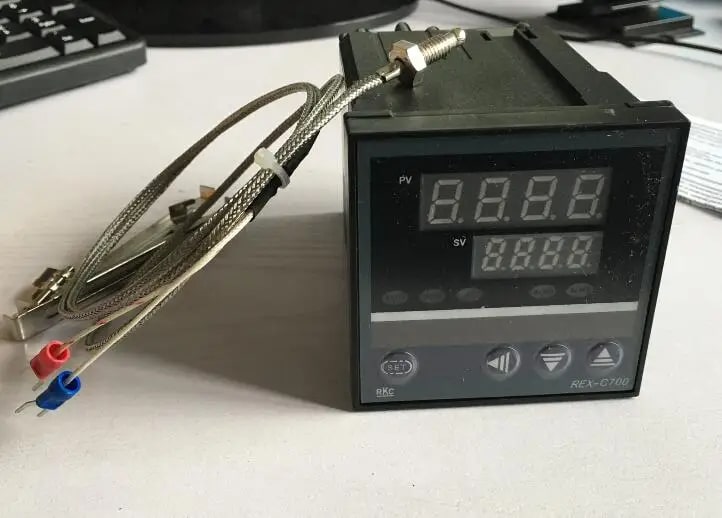

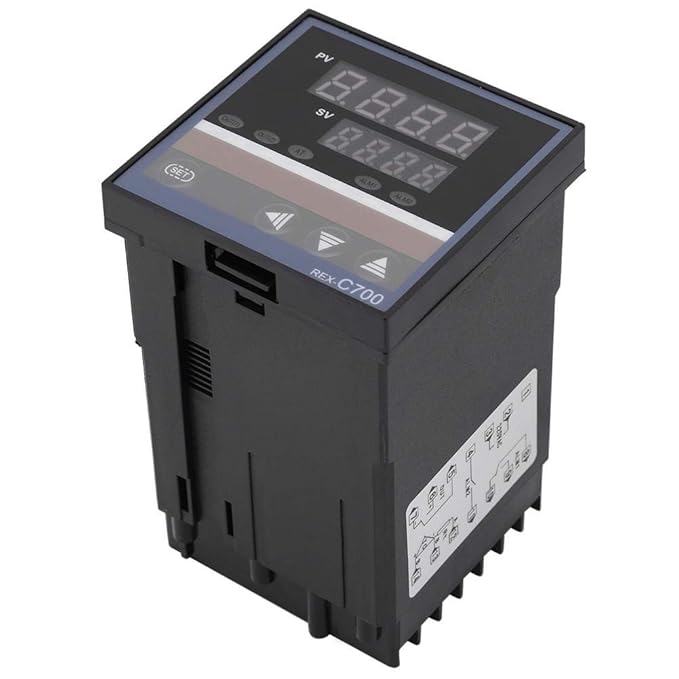

• The REX-C700 is a high-precision dual digital PID temperature controller with an RKC-style display, ensuring accurate and stable temperature regulation for industrial applications. It supports multiple input types and provides reliable control for heating and cooling processes. This model (REX-C700FK02-MAN / REX-C700FK02-VAN) comes with a 1M K-type thermocouple for precise temperature sensing. Its compact 72×72mm design allows for easy panel mounting, making it ideal for ovens, furnaces, and other temperature-sensitive systems.

🔧 Key Specifications

• 100% Brand New.
• Color: Black
• Size: 11.2 x 7.1 x 7.1 cm (LxWxH)
• Cold-end compensation tolerance: ±2°C (can be modified by software in 0~50°C)
• Resolution: 14 bit
• Sampling cycle: 0.5 Sec
• Process value (PV), Setting value (SV)
• Output, alarm, and self-tuning can be indicated by LED
• PIN control (including ON/OFF, step-type PID, and continuous PID)
• Self-tuning control
• Alarm function output: 1 way
• Contact capacity of output: 250V AC 3A (resistive load)
• Setting value (SV): identical to measuring range (PV)
• Proportional band (P): 0 full range (ON/OFF control when set to 0)
• Integral time (I): 0~3600 sec (No integral action when set to 0)
• Derivative time (D): 0~3600 sec (No derivative action when set to 0)
• Heat-reset proportional cycle: 1~100 sec
• Detective temperature range: 0 to 400°C
• Insulation resistance: >50M ohm (500V DC)
• Insulation resistance: 1500V AC/min
• Power Consumption: 10 VA
• Service environment: 0~50°C
• Environment with no corrosive gas, 30~85% RH

• Specifications:
• Usage: Industrial
• Display Type: Digital
• Max Measuring Temperature: 120°C & Above
• Power Type: Charger
• Theory: Temperature Controller
• Size: 72*72mm

⚙️Features:

• **Advanced Precision and Control**
• The REX-C700 Dual Digital RKC display PID temperature controller is a robust and reliable solution for industrial applications requiring precise temperature control. With a maximum measuring temperature of 120°C and above, this device is designed to withstand the rigors of high-temperature environments. The digital display ensures clear and easy-to-read temperature readings, while the programmable nature of the controller allows for customized temperature settings to meet specific process requirements.

Package Content:

• 1 x Digital Temperature Control Controller
• 1 x English manual

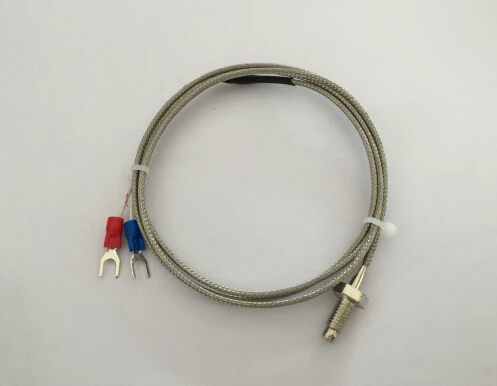

• 1 x K thermocouple (1m)
• *SSR NOT INCLUDED
