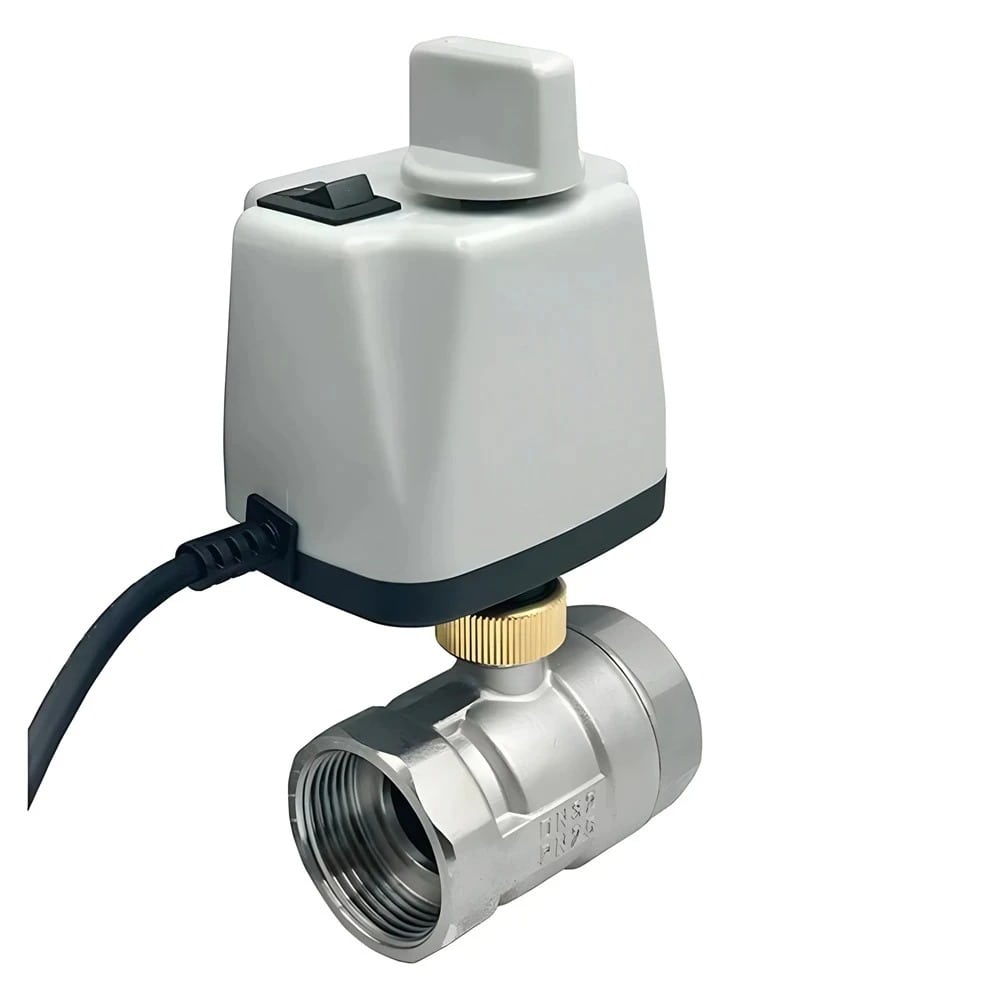

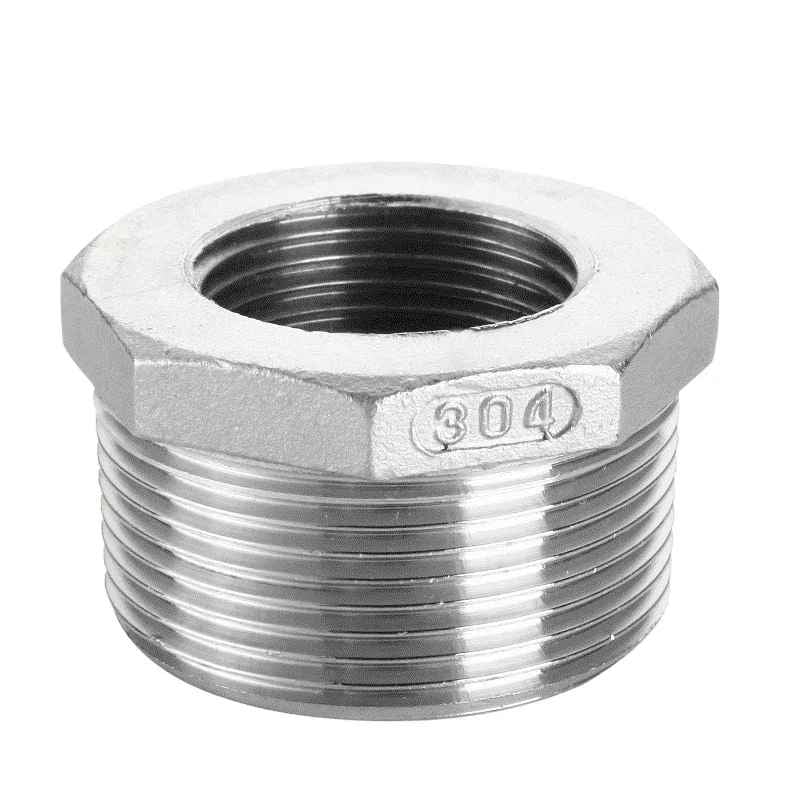

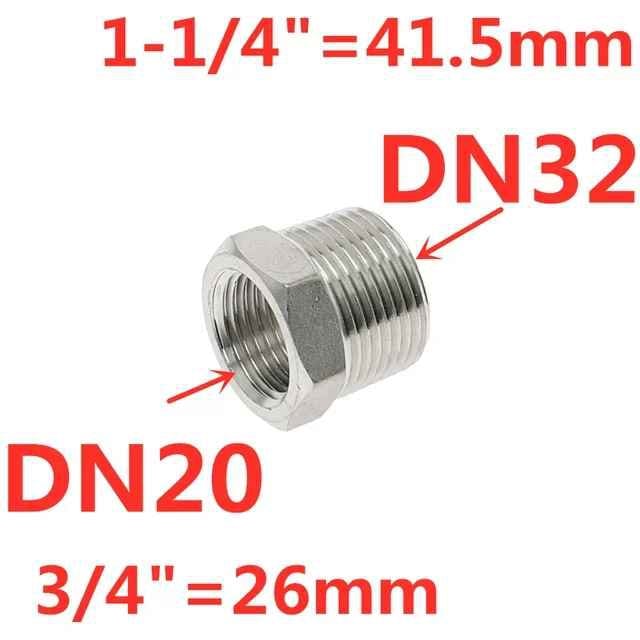

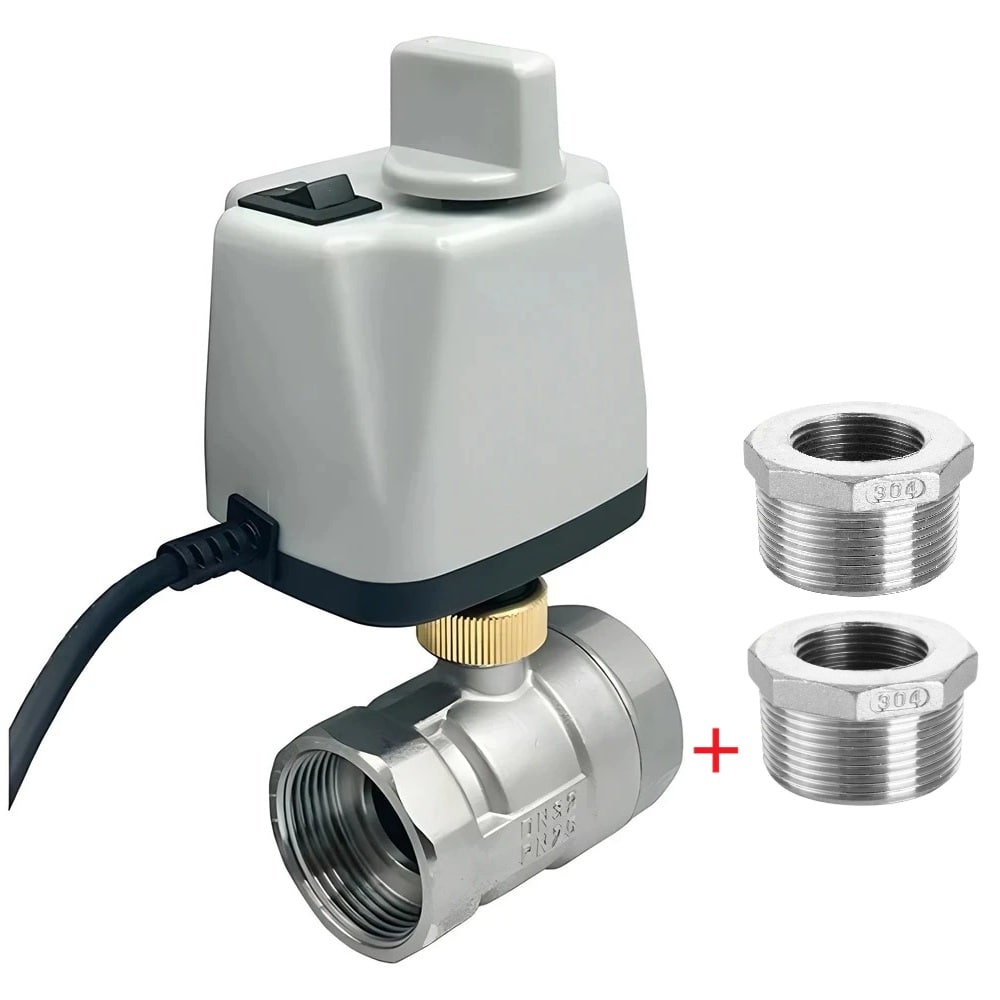

Stainless Steel Motorized Ball Valve with Manual Switch – Normally Closed with 2 DN32-DN25 adapters

📖 Description:

• The stainless steel motorized ball valve is designed for durability and reliable fluid control, making it ideal for industrial and residential applications. It features a manual switch for emergency operation, providing additional flexibility in case of power failure.

🔧 Technical Specifications:

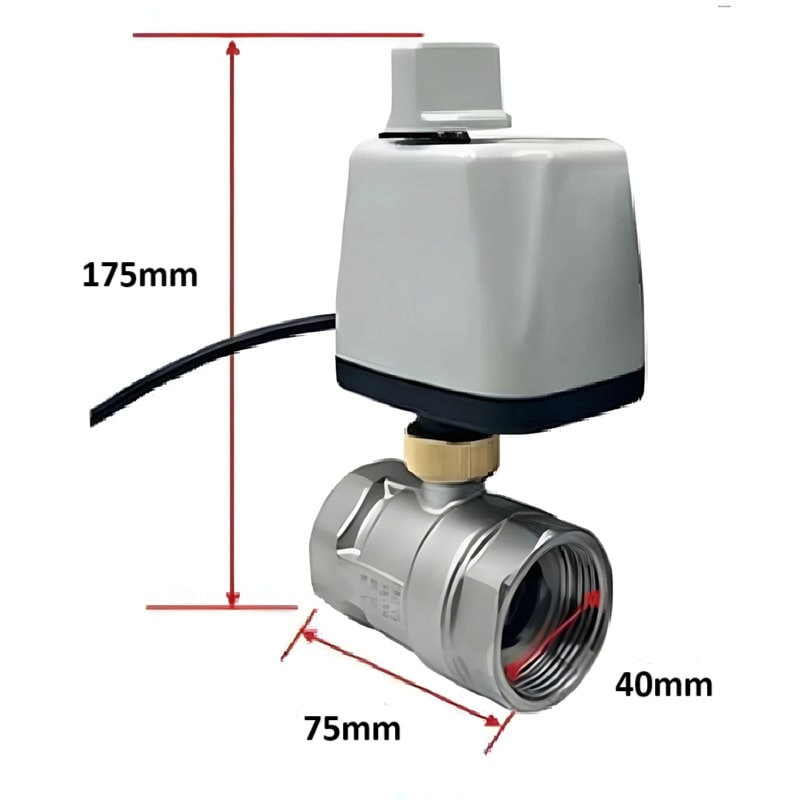

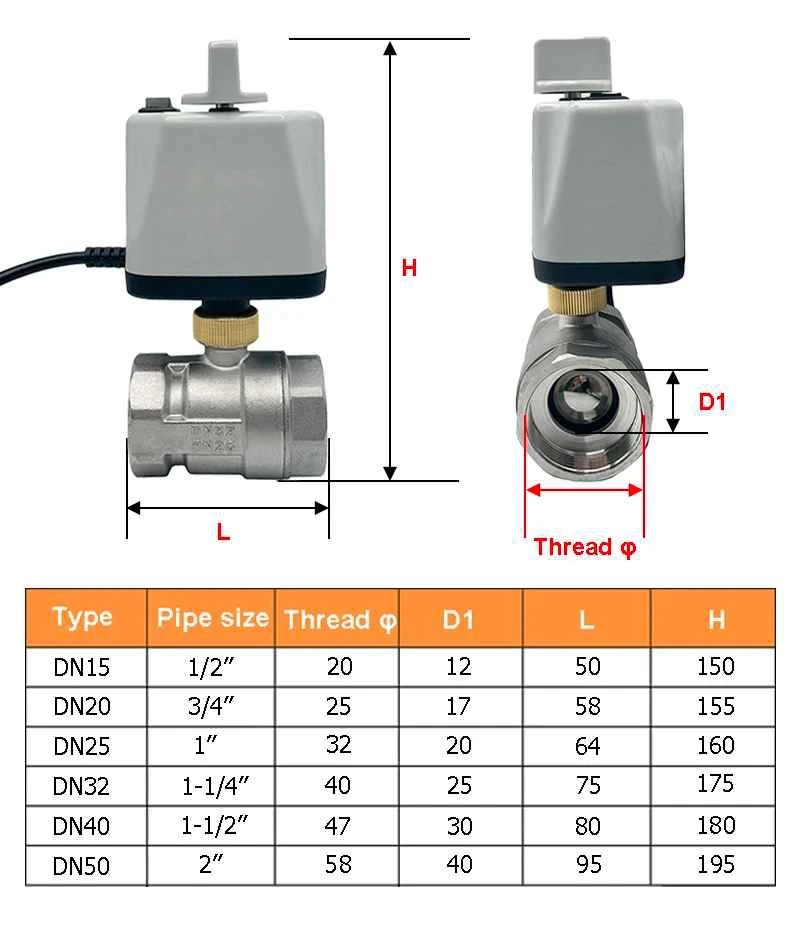

• Valve Sizes: DN25 (1 inch), DN32 (1 1/4 inch)
• Valve Type: Motorized Ball Valve
• Power Supply: AC 220V

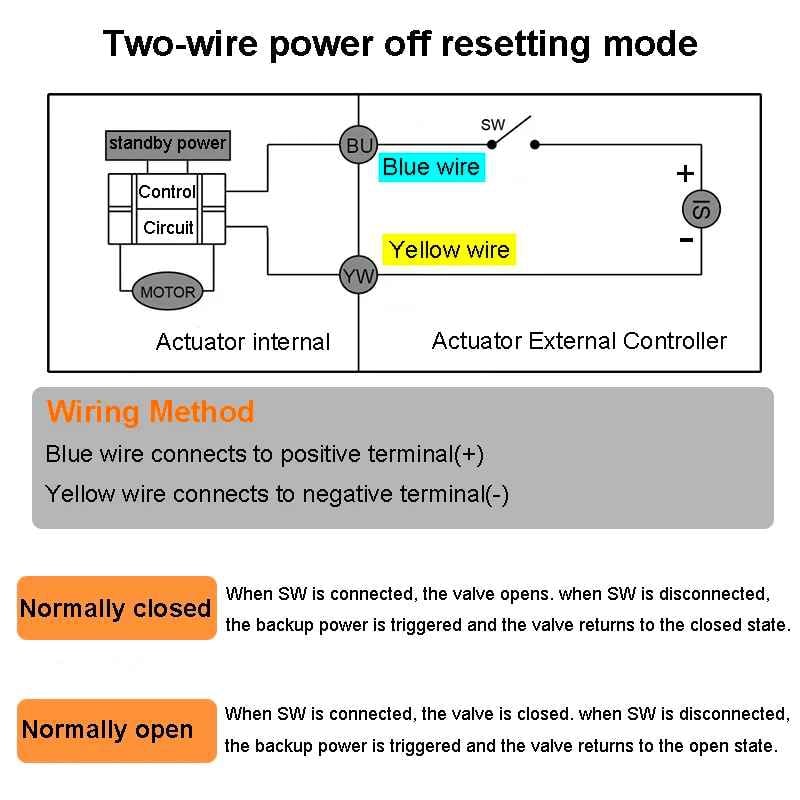

• Control Method: 2-Wire (Power to Open, Power Off to Close – Normally Closed)
• Manual Control: Integrated manual override switch for emergency operation
• Valve Body Material: Stainless Steel (typically SS304)
• Seal Material: PTFE (Teflon)
• Thread Type: G (BSP) or NPT optional
• Rated Torque: ≥ 2.0 Nm
• Enclosure Rating: IP65 (Dustproof and water-resistant)
• Working Pressure:1 MPa – 1.0 MPa
• Response Time: Open/Close in 5–15 seconds
• Fluid Temperature Range: 0°C – 90°C
• Ambient Temperature Range: -10°C to 60°C

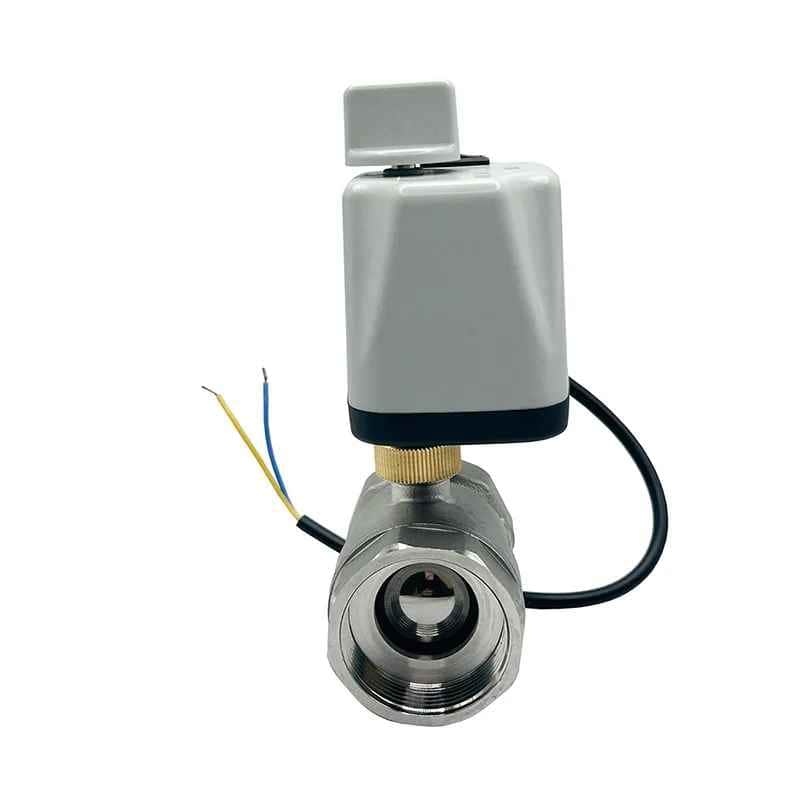

• Electrical Connector: Standard wire leads
• Service Life: ≥ 70,000 cycles

⚙️ Features:

• Stainless Steel Construction: Offers superior resistance to corrosion and high durability for aggressive or hygienic environments.
• Normally Closed Functionality: Ensures safety by keeping valve closed when not powered.

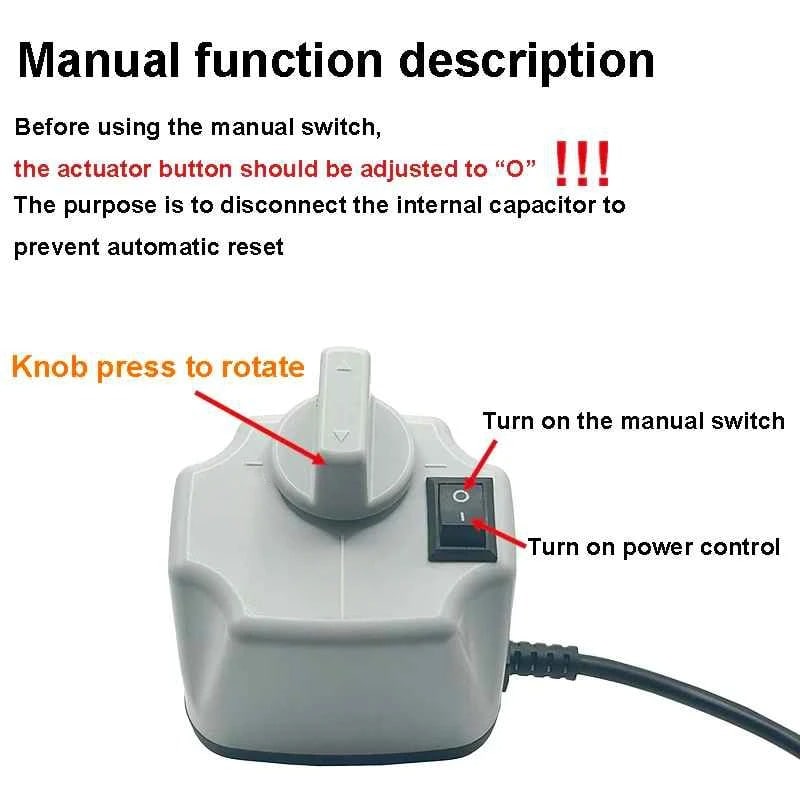

• Manual Switch: Handy for manual override during power failure or system testing.
• Compact Motor Design: Space-saving actuator with reliable motor mechanism.
• Waterproof IP65 Design: Suitable for outdoor or high-moisture applications.
• Quiet Operation: Low noise motor suitable for domestic and commercial settings.
• Energy Efficient: Draws power only during actuation.

🛠️ Applications:

• Water Supply & Control Systems: Automates flow in water pipelines, booster systems, or water purifiers.
• Heating Systems (HVAC): Controls flow of hot water in heating loops or underfloor systems.
• Agricultural Irrigation: Used in automatic irrigation controllers and drip systems.
• Food & Beverage Industry: Suitable for sanitary environments requiring stainless steel components.
• Industrial Automation: Reliable fluid control in factory automation or chemical processes.
